TSENSE-LCD | CO2/RH/TEMP, LCD, RELAY, BACNT | ACI
Carbon Dioxide Sensor, Analog, Modbus, or BACnet, RH/TEMP, RELAY, LCD
Documents and manuals
ACI TSENSE-LCD Documents
Overview
Details for TSENSE-LCD
CO2/RH/TEMP, LCD, RELAY, BACNT
CO2 Sensor with Temperature, RH & Display TSENSE is an advanced and versatile 3 in 1 transmitter. Designed for installation in the air conditioned zone, it measures CO2 concentration, temperature and humidity in the ambient air. The data is transmitted to a BMS system or stand-alone controller using industry standard output signals and communications protocols, including BACnet„¢. TSENSE combines all the necessary elements for effective climate control in commercial office buildings, hospitals, hotels, schools and other facilities, allowing for a comfortable and healthy environment for the occupants. It is flexible in design and is suitable for use in many different energy efficient ventilation strategies. 0 to 10 VDC outputs based on 0“2000 ppm, 32-122°F, 0-95% RH. Relay On/Off, based on 1000/900 ppm (CO2). Life expectancy based on 15 years (typical). Backlit LCD displays: CO2 (ppm), Temperature (°F), and Humidity (%RH). Touch display menu system Environmental conditions covered: Carbon Dioxide, Temperature, and Relative Humidity.

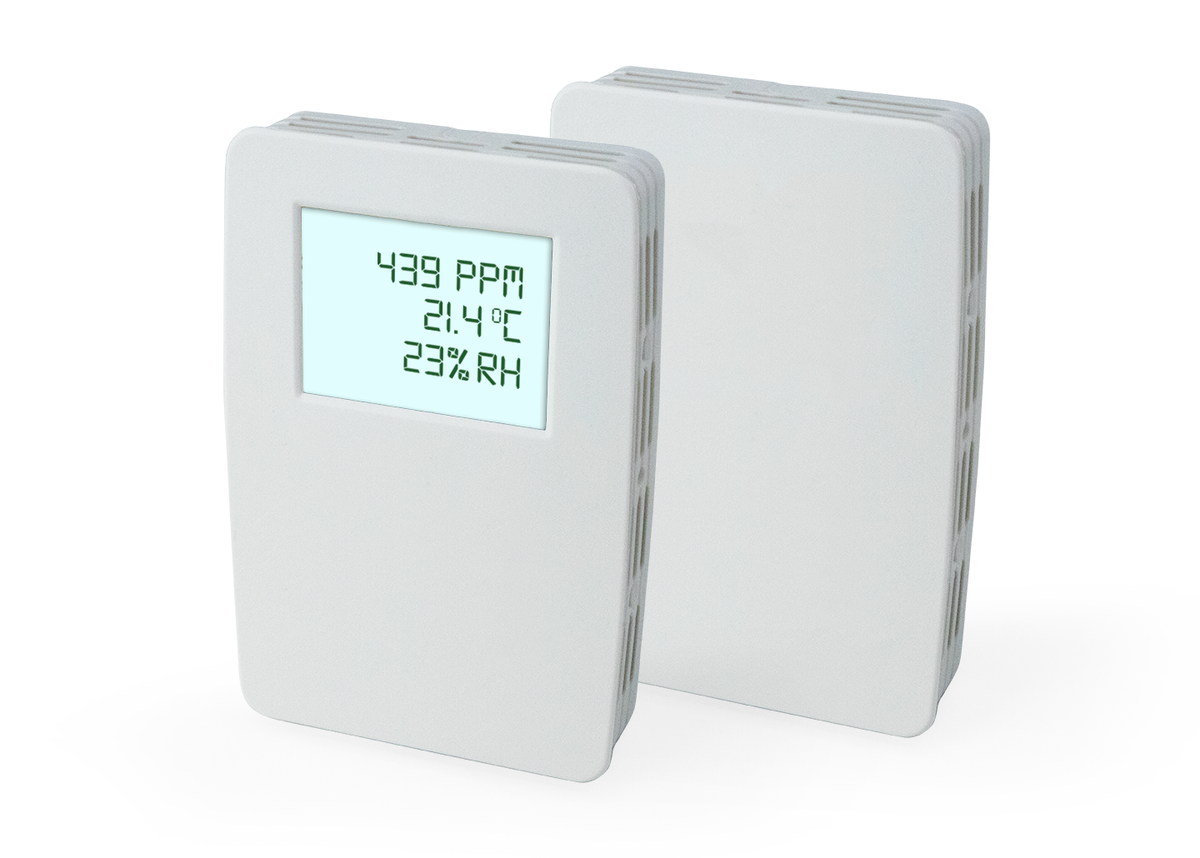

The two part numbers are TSENSE (no display) and TSENSE-LCD (with display).
Carbon Dioxide sensors or transmitters for HVAC, Building Automation Systems, or ANSI/ASHRAE Standard 62.1-2004. Typical applications include: schools, office buildings, auditoriums, gymnasiums, shopping malls, theatres, demand control ventilation, economizers.
- Combines CO2, Temperature, and Relative Humidity into one unit
- Bacnet or analog outputs
- User-friendly menu
Veris HWLP1T1, HWLP1T3, HWLP2T1, HWLP2XX, HWLPHTX,
Alerton BACtalk, WEBtalk, Viewport, Envision, Compass software
Honeywell Excel Web II, XL2026B2A, TB7600, Spyder BACnet
Reliable Controls MACH-System, MACH-Global, MACH-Zone, MACH-Net
Greystone HANTRC, HANTO, HANTD, NTO, NTD, CMD, CDD3, ULP, RPC, NTRC, UP, DWDT, ULP2-BAC, ULP1-BAC, CDD3A101S
Specifications
Item Number | TSENSE-LCD |
Brand | ACI |
