M-CONTROLLERX-000 | M-CONTROLLER FOR CO SENSOR | ACI
Controller, 32 dgital QEL sensors, eight 4-20mA inputs, 3 DPDT Relays, Steel Nema 1
Documents and manuals
ACI M-CONTROLLERX-000 Documents
Overview
Details for M-CONTROLLERX-000

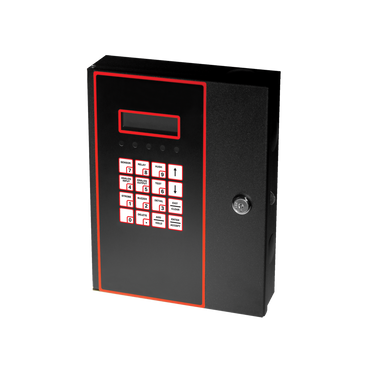

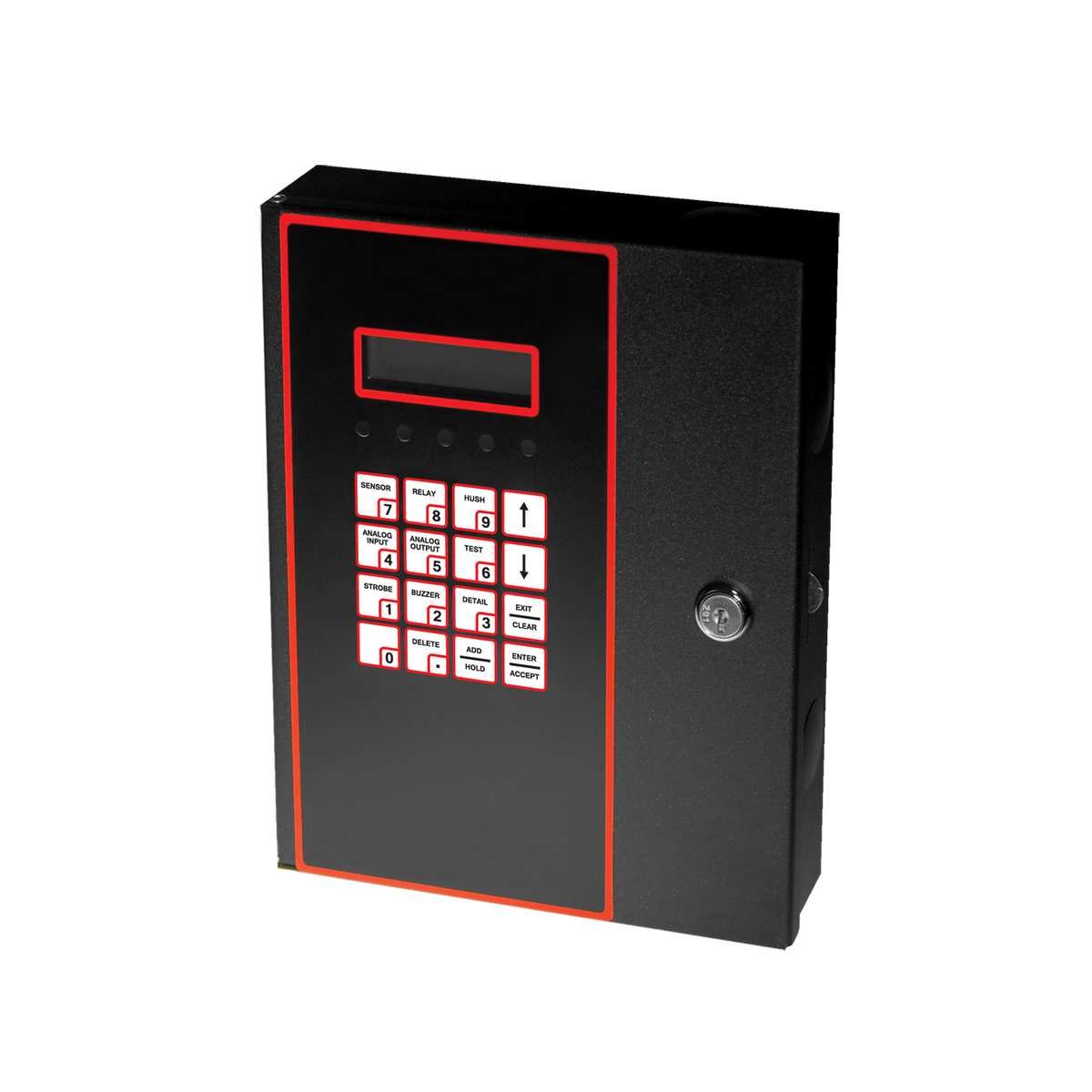

M-CONTROLLER FOR CO SENSOR
The M-Controller is a multi-channel controller and alarm unit. It utilizes both digital and analog communications to interface with a maximum of 32 remote digital transmitter/sensors, and 8 analog transmitter/sensors. Range and alarm setpoints are set either through the front keypad or through software that is downloaded to the controller from a PC or laptop computer. Common relay configurations include voting, averaging, delay on actuation and de-actuation, normally/not-normally energized and latching. An additional feature includes 24 VDC transistor outputs for a horn and strobe. A RS-422 responds as a RTU Slave using MODBUS protocol which allows the controller to provide read status information only. The RS-232 interface uses a RJ-11 telephone jack. This is primarily used for uploading and downloading a large configuration database. Also available is an analog output card that includes eight 4-20 mA analog outputs. Each analog output can be defined in complex fashions allowing the averaging of several input signals and the assignment of different values to both the 4 and 20 mA outputs. The M-Controller automatically linearizes the values between these two points
Specifications
Item Number | M-CONTROLLERX-000 |
Brand | ACI |
