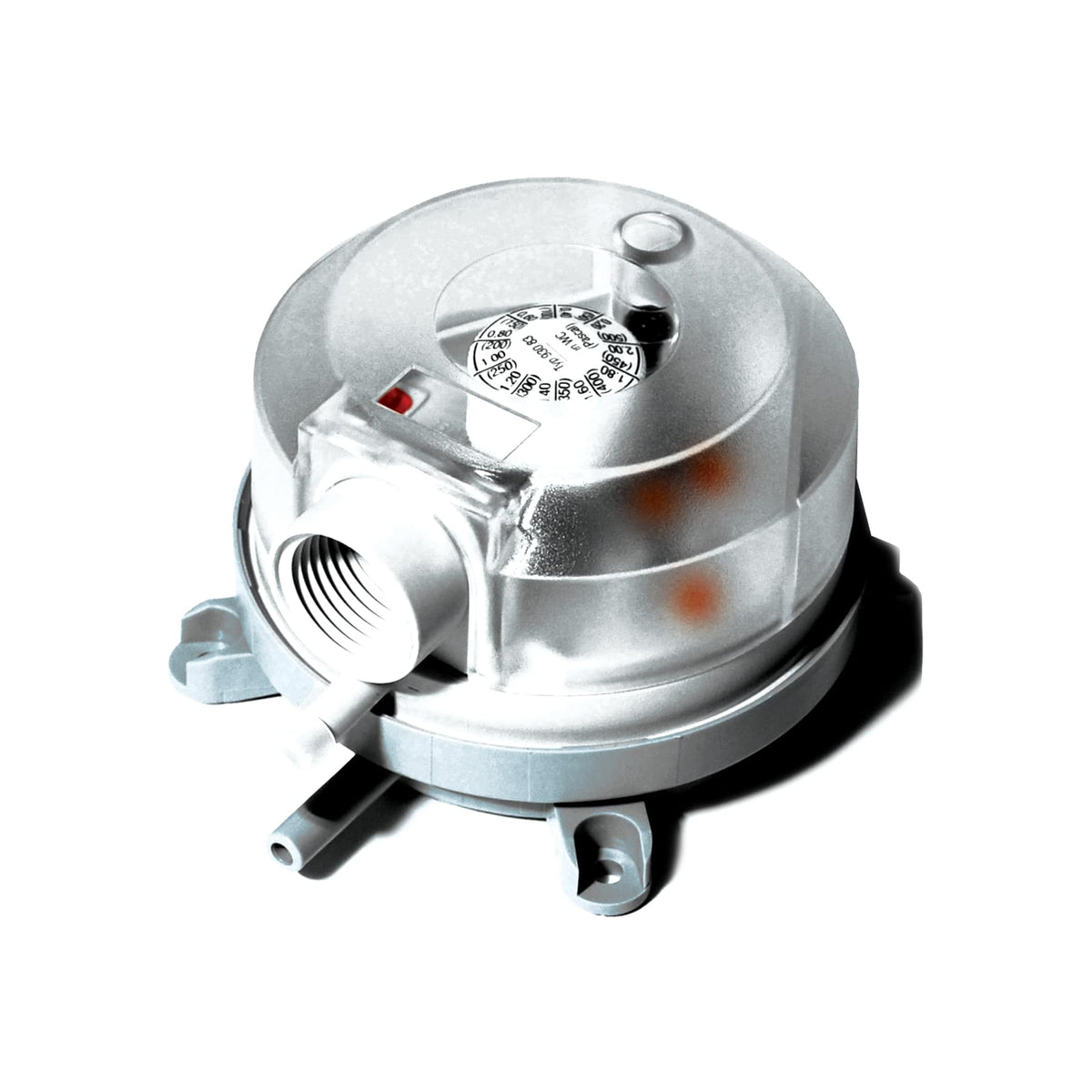

DBL-205D | LOW AIR/GAS DP SWITCH0.8"-4.WC | ACI
Differential Pressure Switch, 0.8 to 4.0 inWC, SPDT, Auto Reset, NEMA 3 Enclosure
Documents and manuals
ACI DBL-205D Documents
Overview
Details for DBL-205D
LOW AIR/GAS DP SWITCH0.8"-4.WC
The DBL Series Differential Pressure Switches are adjustable vacuum, pressure and differential pressure switches designed for both HVAC and Energy Management Applications. Due to the ease of calibration and adjustment procedures, these units will save you both installation time and money. The
units have field adjustable setpoints and switching differentials. They will reset automatically. Each unit contains (1) SPDT contact rated for 1 Amps @ 250 VAC. All wiring connections are to be made with spade connectors and a maximum wire size of 16 AWG.
The DBL Series is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's web site, www.workaci.com.
Specifications
Item Number | DBL-205D |
Brand | ACI |
