AFS-262 | Pressure Switch | ACI

Differential Pressure Switch, 0.05 to 2.0 inWC, SPDT, Auto Reset, 1/4" Compression Fitting

Brand: ACISKU: AFS-262

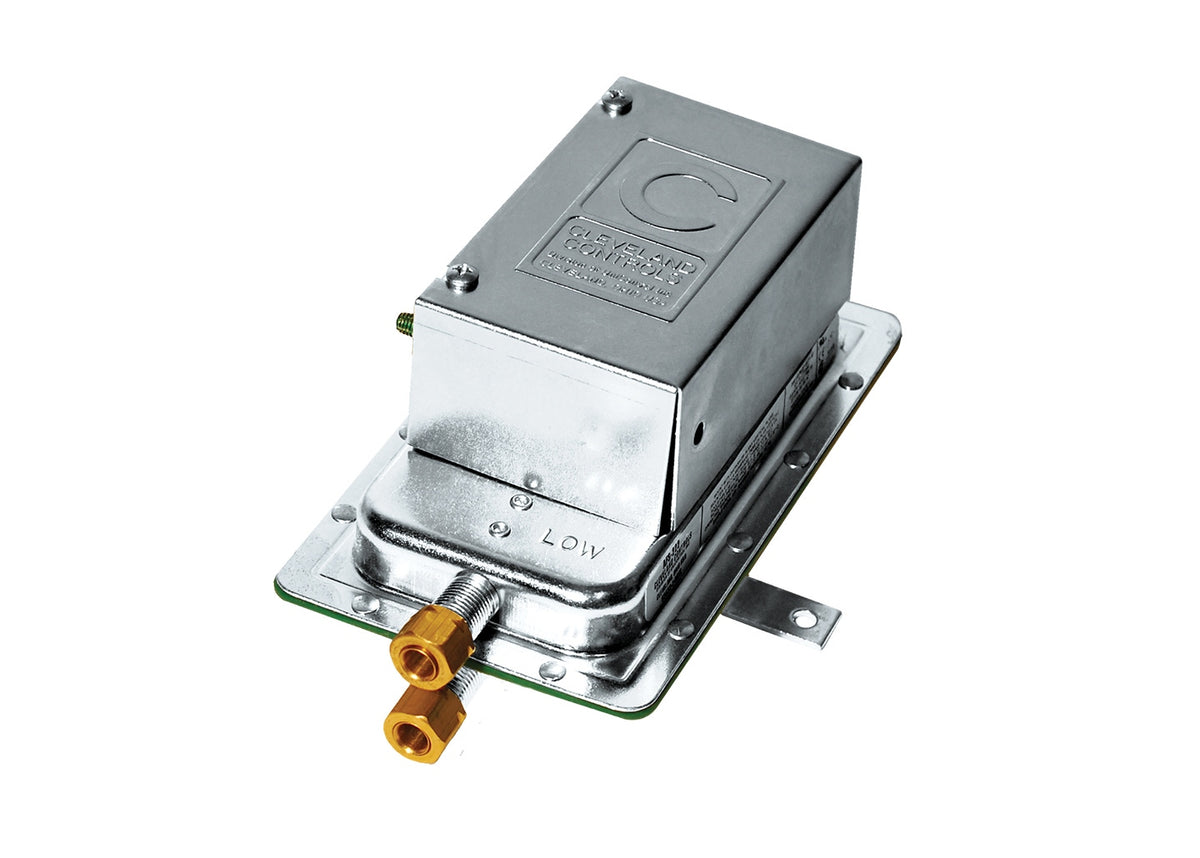

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AFS-262

Jump to: Overview & Specifications Reviews

Overview Details for AFS-262

AFS-262 | Pressure Switch

The AFS-262 differential pressure switches are general purpose proving switches designed for both HVAC and Energy Management applications. These pressure switches can be used to sense positive, negative, or differential air pressures. The AFS-262 has a field adjustable operating range of 0.07" to 2.0" W.C.. It also has a setpoint range of 0.05" +/- 0.02" to 2" W.C. with a field adjustable "release range" of 0.04" to 1.9" W.C.. The AFS-262 will accept a 0.25" O.D. rigid metallic tubing via the integral compression ferrule and nut. The enclosure cover guards against accidental contact with the live switch terminal screws and the setpoint adjusting screw. It also contains a 1/2" conduit knockout in the cover of the enclosure.

ACI differential air pressure switches are designed for HVAC, Building Automation, or light industrial systems. Typical applications include: building static pressure, filter monitoring, and proof of air flow.
