B6-CO/CH4-100L | Dual Sensor w/ BACnet Protocol MSTP, Main unit: Carbon Monoxide 0-250 ppm, Remote Unit: Methane 0-100% LEL | ACI

Dual Sensor w/ BACnet Protocol MSTP, Main unit: Carbon Monoxide 0-250 ppm, Remote Unit: Methane 0-100% LEL

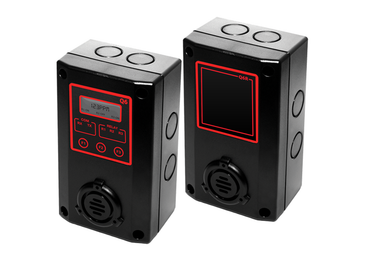

The Q6/B6 Toxic/Combustible Gas Detectors use various sensing technologies to detect a wide assortment of gases. These units are housed in a NEMA 4X rated plastic enclosure that will meet a wide variety of applications. The combo unit consists of a main unit (Carbon Monoxide only) with an LCD, LED status indication, 3 user configurable relays and a remote sensing unit (various gas types available) for installation at high or low elevations based on the density of the gas being detected. The main and remote unit gas concentrations levels are both displayed on the main units LCD. This series also features a sensor module that can be easily replaced by removing a couple of screws and unplugging the existing module before inserting the new factory calibrated sensing module. All units should be verified for proper functionality and calibration once the replacement sensor module has been reinstalled. A user selectable password can be used to protect the system integrity. The Q6 can be used as a stand-alone controller or in conjunction with one of our Q4C, M-Controller or Q-Controllers using the proprietary RS-485 Optomux communication protocol. Calibration gases and a 0.2 to 1 liter/minute _ow limiting gas regulator are not available through ACI and should be purchased through your local gas supply company or on-line companies such as Portagas®(Praxair®, Inc.) or Mesa Specialty Gases®. ACI also offers a full line of horns and strobes that can be used with the gas detectors or building management system to alert building occupants of an alarm condition. It is your responsibility to ensure that the Q6/B6 Series will meet all of your applicable Federal, State, Provincial and Local Health and Safety laws and regulations before using these products.

Applications: Mechanical Rooms, Warehouses, Refrigeration Plants, Industrial Plants, Process Monitoring, Leak Detection, Parking Garages, Auto/Truck Maintenance Facilities, Oil and Gas Industry

The Q6/B6 Series Gas Transmitters are covered by ACI's Two (2) Year Limited Warranty against defects in material and workmanship from the date of shipment with the exception of the Sensor Modules (Electrochemical/Toxic: Six Months and Catalytic/Combustible: One Year). The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
