ASENSE-GH-LCD | ASENSE GH DISPLAY | ACI
Carbon Dioxide Sensor, Greenhouse, 0-2000 PPM, Temp and Relay, Conformally Coated PCB, LCD
Documents and manuals
ACI ASENSE-GH-LCD Documents
Overview
Details for ASENSE-GH-LCD

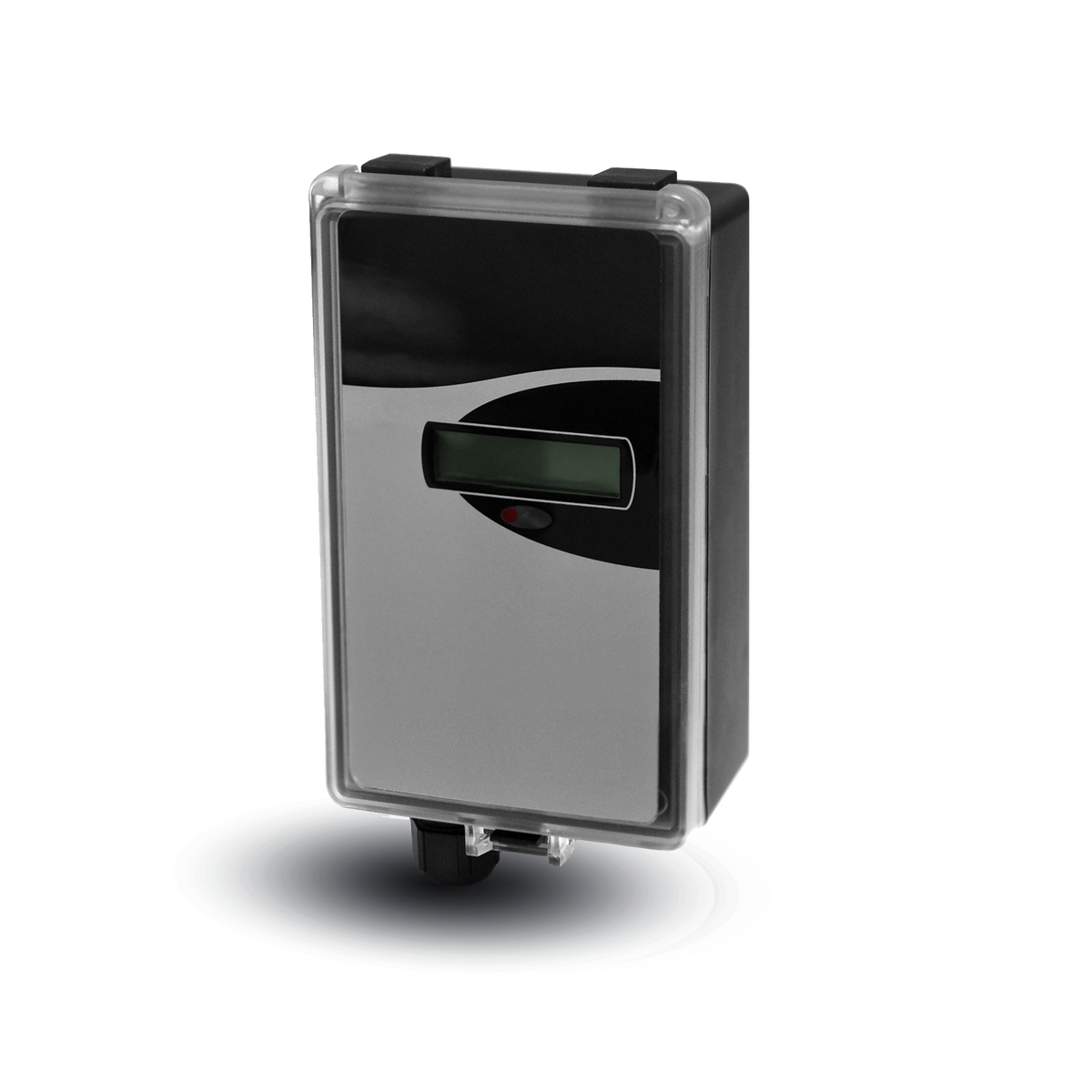

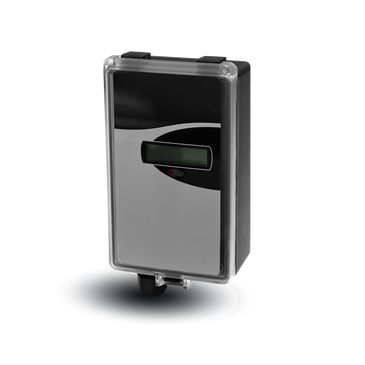

ASENSE GH DISPLAY
The ASENSE-GH-LCD is a CO2 sensor that is designed for monitoring CO2 and temperature in areas that have higher Carbon Dioxide levels such as greenhouses, incubators, and breweries. It has a conformally coated PCB and filter equipped housing to protect against dust and high humidity. The ASENSE-GH uses State-of-the-art non-dispersive infrared (NDIR) technology and has a membrane covered sample chamber that gives a stable and reliable CO2 reading. There are three (3) outputs on the ASENSE-GH: Output 1 for CO2: 0/2-10V or 0/4-20 mA 0-2000 ppm, Output 2 temperature: 0/2-10V or 0/4-20 mA 0-50ºC, and Output 3 is a relay for fan control. An optional RS485 interface for Modbus communication is available. NOTE: This product can be custom calibrated to ranges up to 10,000 PPM. Please add the part listed in the lower left corner of this page for custom calibration.
Applications: Greenhouses, Grow Houses, Breweries, Indoor Agriculture, Mushroom Farms, Horticultural and Medical Incubators
Specifications
Item Number | ASENSE-GH-LCD |
Brand | ACI |
