AFP VERSION #8 | Analog Input (0-5VDC), Floating Point Output (46 sec), Version #6, (240, 600s Selectable) | ACI
Analog Input, Floating Point Output (46 sec), Version #6, (240, 600s Selectable)
Documents and manuals
ACI AFP VERSION #8 Documents
Overview
Details for AFP VERSION #8
Analog Input (0-5VDC), Floating Point Output (46 sec), Version #6, (240, 600s Selectable)

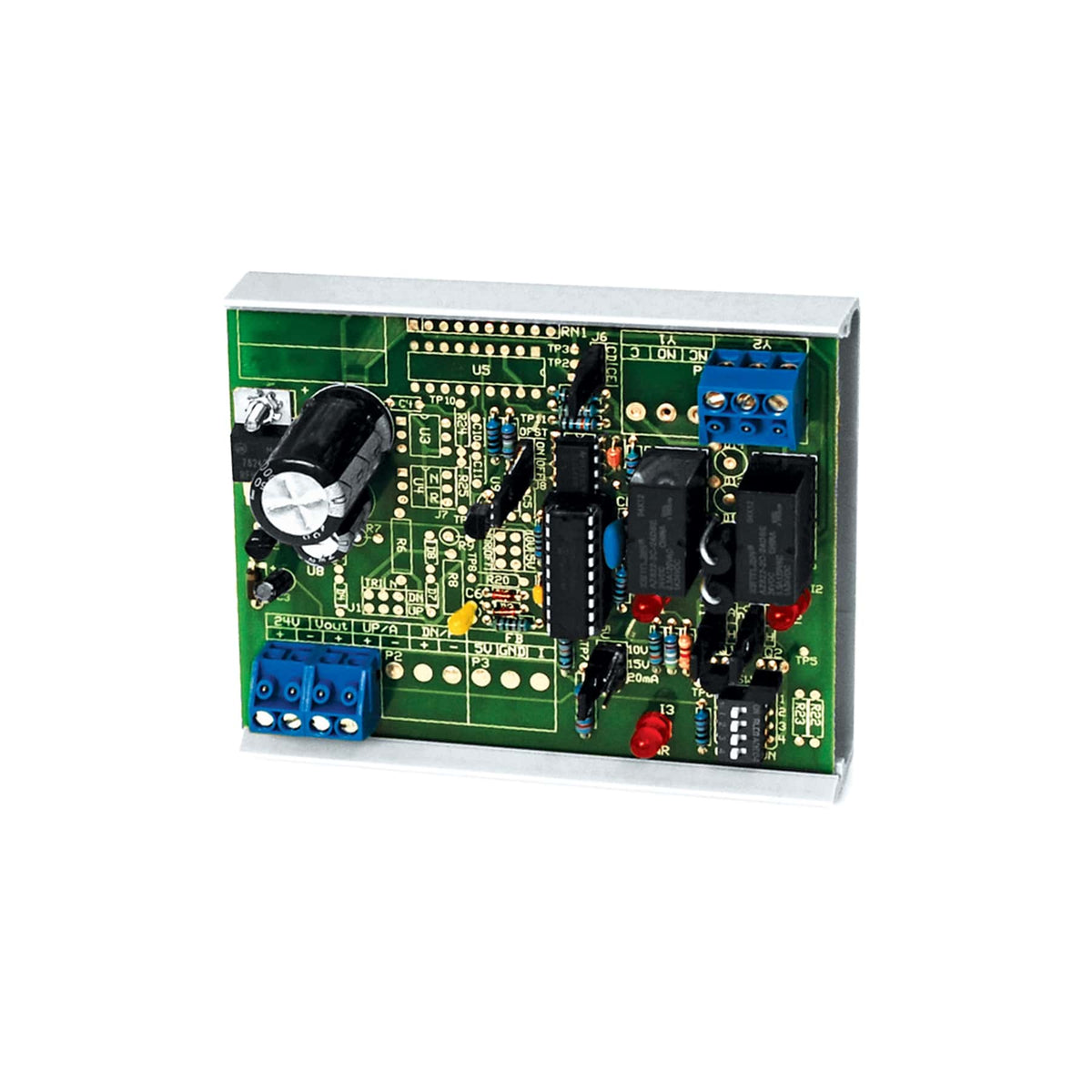

The AFP allows an analog signal to control a floating point actuator. It converts an analog signal into two relay contact outputs (one increase/one decrease). The isolated floating point output can be controlled by any one of eight analog input signal ranges (using offset jumper). On a loss of power, the AFP's output relays will be open, and no signal will be generated. The actuator will remain at the last commanded position unless it is "spring return". The AFP output rate of change (46s, 240s, 600s) is DIP switch selectable. In VERSION #8, upon power-up, the decrease relay will drive 105% of the chosen timing range to ensure that the output is at its minimum position.
Specifications
Item Number | AFP VERSION #8 |
Brand | ACI |
