013 | 24V (ac) Transformer 013 - 96VA, includes Mounting Box | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 013

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 013 Documents

Datasheet Installation Instructions More Info

Overview

Details for 013

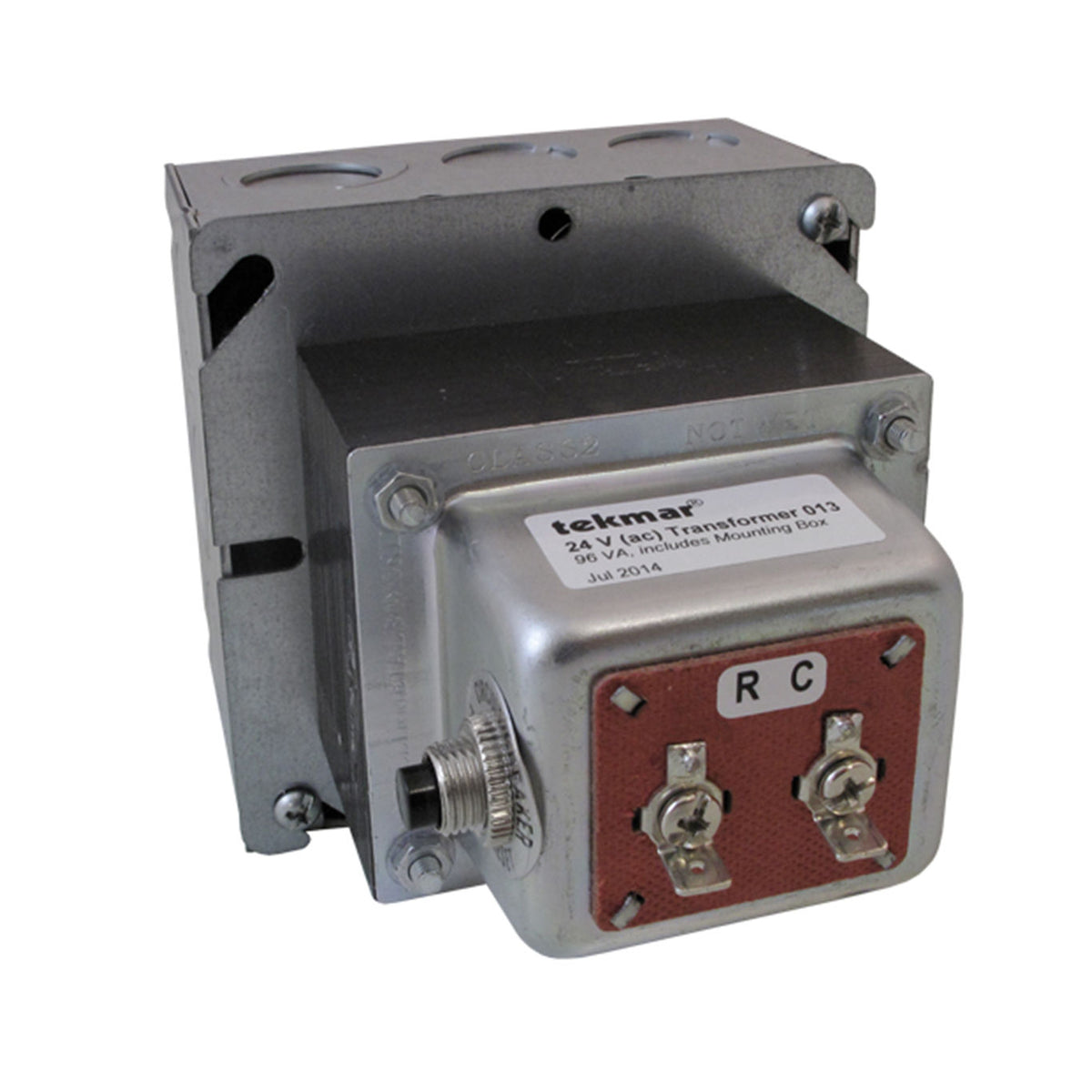

24V (ac) Transformer 013 - 96VA, includes Mounting Box

The 24 V (ac) Transformer 013 has a 115 V (ac) primary and a 24 V (ac) secondary with a capacity of 96 VA. A resettable circuit breaker protects the transformer from overloading. A 4 x 4 inch electrical junction box is included for mounting.

Features

Includes 4 inch x 4 inch electrical box
NEC/CEC Class 2 circuits
96 VA
Resettable circuit breaker

Specifications

Item Number	013
Brand	Tekmar
Agency Approvals	Transformer UL C US, Electrical Box - CSA and UL
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C)
Circuit Breaker	4A
Dimensions	4" L x 4" W x 5-7/8" H (102 x 102 x 150 mm)
Input Power Supply	115 V (ac) plus / minus 10 percent, 60 Hz
Output Power Available	22 to 30 V (ac), 60 Hz, 96 VA, Class 2
