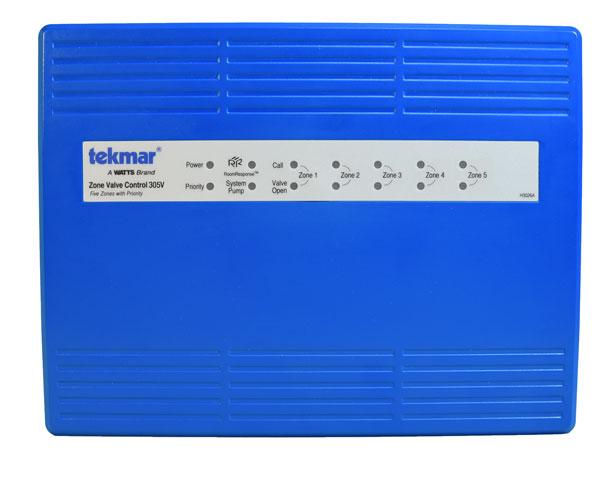

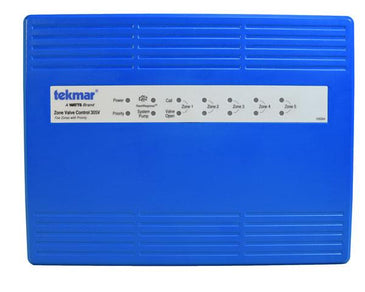

305V | 5 Zone Valve Control | Tekmar
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 305V
Documents and manuals
Tekmar 305V Documents
Overview
Details for 305V
5 Zone Valve Control
The Zone Valve Control 305V connects up to five thermostats and operates zone valves to provide heating to a zoned hydronic heating system. The 305V operates a system pump whenever a zone valve opens. Zone 1 can operate either a zone valve or a circulator to provide heat to an indirect domestic hot water tank with optional priority over zones 2 through 5. The 305V includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the domestic hot water tank to maximize energy savings. The 305V provides a RoomResponseTM signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.
Features
- Compatible with 2, 3 and 4-wire zone valves, unlimited zone expansion
- Two spare fuses included
- LED for each zone, priority, end switch and RoomResponse™, away signal shared between tekmar thermostats
- Post purge, LED for each zone, priority, end switch and RoomResponse™
- RoomResponse™ signal, compatible with all low voltage thermostats
- Four ground screws, Top, bottom and back conduit knockouts
- Zone priority, priority override
- CSA approved
- Fuses protect transformers and pumps
Specifications
Item Number | 305V |
Brand | Tekmar |
Category | Zone Control |
