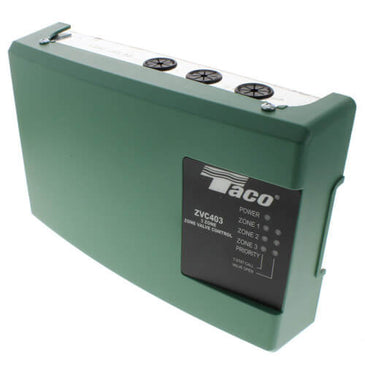

ZVC403-4 | 3 Zone Valve Control Module with Priority | Taco

Taco | ZVC403-4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZVC403-4

Documents and manuals

Overview

Details for ZVC403-4

3 Zone Valve Control Module with Priority

Zone Sentry Zone Valves

Taco Zone Sentry ® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Performance Data

Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)

Features
  • Up to 93% less energy usage
  • Universal Installation Orientation
  • Usable on Condensing Chilled Water Installations
  • 12 valves on one 40VA transformer
  • Multi-Function LED
  • Quick Connect Wiring
  • Push button actuator replacement
  • Easy wire quick connections Manual override button
  • Positional indicator
Applications

Zone Sentry

  • Hydronic Heating and Cooling

Geo-Sentry®

  • Open or Closed Loop Geothermal Systems with Water Source Heat Pumps

 Potable Water Zone Sentry

  • Combination Domestic Water and Hydronic Heating System
  • Water Shut Off to a Potable System

Taco Zone Valve Controls work with two, three, or four-wire zone valves. Fully fuse protected,they also include two isolated end switches and a built-in priority switch. The contractor friendlyPC board layout eliminates the problems caused by incorrect wiring and the "unfinished" look ofconventional zone valve installations. The sturdy screw connections add additional reliability, whilethe external indicator lights provide instant diagnostic feedback, reducing installation time. All TacoZone Valve Controls are UL and CSA listed and carry an extended 3 year warranty.

Use them combined with Taco Zone Valves and Thermostats to maximize system performance and dependability.

Features include:
  • External Indicator Lights
  • Switchable Priority
  • Simplified Wiring
  • Works with 2, 3, or 4-Wire 24V Zone Valves
  • Compact Design
  • Fuse Protected
  • 100% Factory Tested
  • Two Isolated End Switches
  • Extra Set of Dry Contacts
  • Contractor Friendly PC Board Layout
  • Universal Thermostat Compatibility
  • UL and CSA Approved
  • Sturdy Screw Connections
  • Extended 3 Year Warranty

Specifications

Item Number ZVC403-4
Brand Taco
Application Zoning
Depth (Inches) 2-3/4"
Height (Inches) 6.75"
Series Zone Sentry
Type Controller
Voltage 120v
Width (Inches) 10-1/4"
Wiring PC Board
Zones 3
