Z075F2-2 | ZONE SENTRY | 3/4" INV FLARE 2-WAY N.C. | 24V | Taco

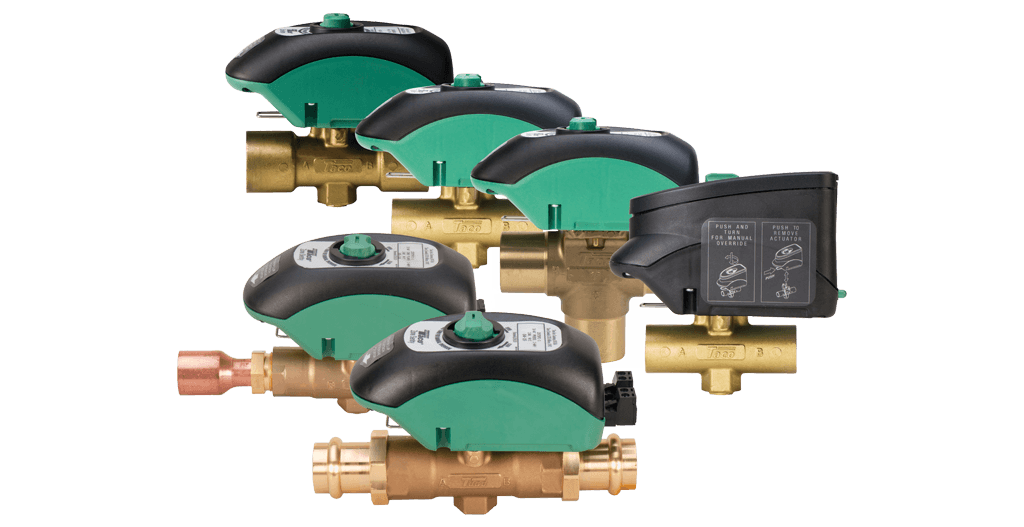

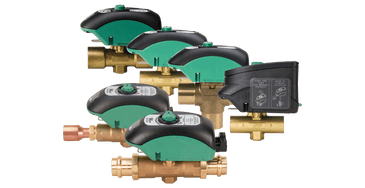

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to Z075F2-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco Z075F2-2 Documents

Datasheet Installation Instructions More Info

Overview

Details for Z075F2-2

ZONE SENTRY | 3/4" INV FLARE 2-WAY N.C. | 24V

Zone Sentry Zone Valves

Taco Zone Sentry ^® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Performance Data

Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)

Features

Up to 93% less energy usage
Universal Installation Orientation
Usable on Condensing Chilled Water Installations
12 valves on one 40VA transformer
Multi-Function LED
Quick Connect Wiring
Push button actuator replacement
Easy wire quick connections Manual override button
Positional indicator

Applications

Zone Sentry

Hydronic Heating and Cooling

Geo-Sentry^®

Open or Closed Loop Geothermal Systems with Water Source Heat Pumps

Potable Water Zone Sentry

Combination Domestic Water and Hydronic Heating System
Water Shut Off to a Potable System
