VR3450-HY1-FS2A00 | Circulator Pump (Variable Speed) | Stainless Steel | 115V | Single Phase | 1.48A | Flanged | 50 GPM | 34ft Max Head | 150 PSI Max Press. | Series 0034e | Taco
Documents and manuals
Taco VR3450-HY1-FS2A00 Documents
Overview
Details for VR3450-HY1-FS2A00
Circulator Pump (Variable Speed) | Stainless Steel | 115V | Single Phase | 1.48A | Flanged | 50 GPM | 34ft Max Head | 150 PSI Max Press. | Series 0034e
![](https://supplyfile.com/images/taco/badge_taco.png)
Easy ECM – Easy to install. Easy to program.

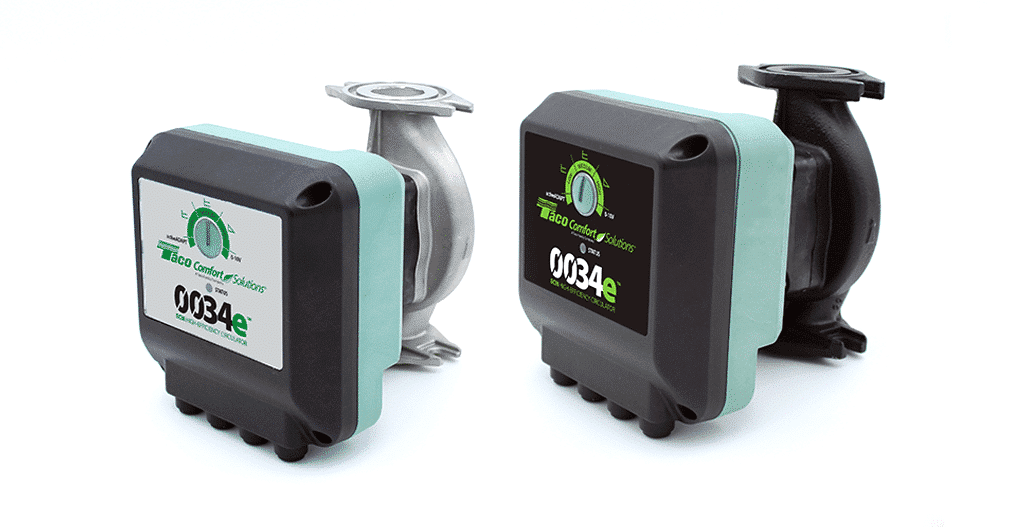

The 0034e™ & 0034ePlus™ ECM High-Efficiency Circulators are high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology. Their variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034e comes with an easy-to-use dial while the 0034ePlus has an intuitive digital user interface.
Performance Data
Shut-off Head: 34 ft
Max Flow: 50 gpm
Max Pressure: 150 psi (10.3 bar)
Max Temp: 230° F (110° C)
Min Temp: 14°F (-10°C)
Voltage: 115/208/230V, 50/60Hz Single phase
Max Power: 170 W
Max AMP: 1.48 A
Flange-to-flange: 6 ½”
Features
- Replaces all single speed and 3-speed circulators in its class
- Rotatable control cover to simplify installation
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit-up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Double insulated
- Whisper quiet operation
Applications
- Closed Loop Hydronic Heating
- Hydronic Systems with Zone Vvalves
- Zoning with Circulators
- Hydronic Heating & Cooling TRV Systems
- DHW recirculation (Stainless Steel)
- Constant Flow Applications
Specifications
Item Number | VR3450-HY1-FS2A00 |
Brand | Taco |
Amps | 1.48A |
Connection | Flanged |
HP | |
Material | Stainless Steel |
Max Flow | 50 GPM |
Max Head Pressure | 34ft |
Max Pressue | 150 PSI |
Optional | |
Phase | Single Phase |
Pump Type | Circulator Pump (Variable Speed) |
RPM | |
Series | Series 0034e |
Type | Pump |
Voltage | 115V |
