MPV140-4 | MULTI-PURPOSE VALVE 14" FLANGED.125#PAINT TO SPECIFICATION QP133 | Taco (OBSOLETE)

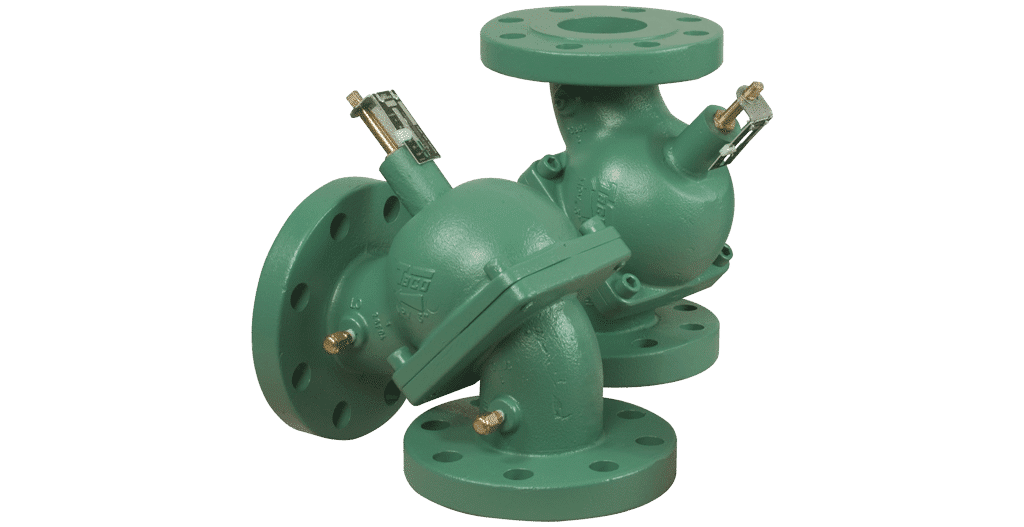

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MPV140-4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco MPV140-4 Documents

Datasheet Installation Instructions More Info

Overview

Details for MPV140-4

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

MULTI-PURPOSE VALVE 14" FLANGED.125#PAINT TO SPECIFICATION QP133

Straight Pattern/Angle Pattern

The Plus Two Multi-Purpose Valve offers performance– low pressure drops that are equal to or better than any valve on the market today–and convenience: You can replace the stem seal packing under full system pressure. The Plus Two Multi-Purpose Valve is made of ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1 ½” through 14″, with flanged connections (1 ½”, 2″ and 2 ½” units are threaded connections).

Performance Data

Range Flow: 20 – 10,000 GPM
Working Pressure: 175 PSI, 300 PSI
Connection Sizes: 1 ½”, 2″, and 2 ½”, threaded, 3″ – 14″, flanged

Features

Horizontal or Vertical Installation
Field Convertible to a Right Angle Valve
“O” Ring Sealed Valve Body
Low Pressure Drop (Equal To or Better Than Any Comparable Valve on the Market Today)

Five (5) Valves in One:

Shut Off Valve
Flow Control Valve (Globe Style)
Non Slam Check Valve
Flow Metering Valve
Straight Pattern Valve can be Converted to a Right Angle Pattern Valve

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal
