Documents: MPV040-4
MPV040-4 | 4" Flanged Plus Two Multi Purpose Valve (357 Cv) | Taco

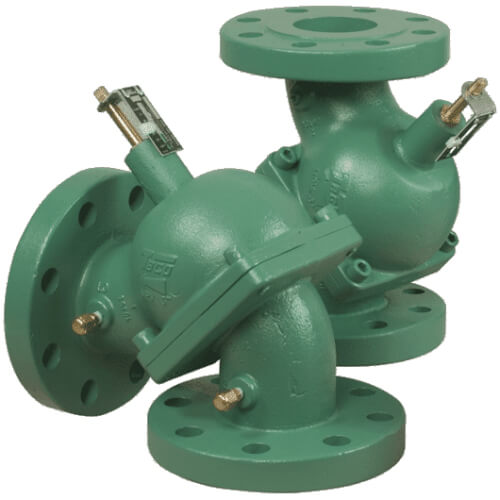

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MPV040-4
Overview Details for MPV040-4
4" Flanged Plus Two Multi Purpose Valve (357 Cv)
Straight Pattern/Angle Pattern
The Plus Two Multi-Purpose Valve offers performance– low pressure drops that are equal to or better than any valve on the market today–and convenience: You can replace the stem seal packing under full system pressure. The Plus Two Multi-Purpose Valve is made of ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1 ½” through 14″, with flanged connections (1 ½”, 2″ and 2 ½” units are threaded connections).
Performance Data
Range Flow: 20 – 10,000 GPM
Working Pressure: 175 PSI, 300 PSI
Connection Sizes: 1 ½”, 2″, and 2 ½”, threaded, 3″ – 14″, flanged
Features
- Horizontal or Vertical Installation
- Field Convertible to a Right Angle Valve
- “O” Ring Sealed Valve Body
- Low Pressure Drop (Equal To or Better Than Any Comparable Valve on the Market Today)
Five (5) Valves in One:
- Shut Off Valve
- Flow Control Valve (Globe Style)
- Non Slam Check Valve
- Flow Metering Valve
- Straight Pattern Valve can be Converted to a Right Angle Pattern Valve
Applications
- Hot Water Heating Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Hydronic Heating & Cooling
- Water/Glycol concentrations up to 50%
- Solar / Geothermal
Taco The new Taco "Plus Two" Multi-Purpose Valve combines all the valvefunctions that are normally required on the discharge side of acentrifugal pump in a hydronic heating or cooling system into one body.It is a Shut-Off Valve, a Non-Slam Check Valve, a Balancing Valve, anda Flow Metering Valve, and now it is field convertible from a straightpattern to a 90 degree right angle pattern. In addition the new "PlusTwo" Multi-Purpose Valves have low pressure drops, equal to or betterthan any valve on the market today, and the stem seal packing can bereplaced under full system pressure.
Features:
- Horizontal or Vertical Installation
- Field Convertible to a Right Angle Valve
- Stem Seal Packing Replaceable Under Pressure
- Bronze Fitted Construction
- Five (5) Valves in One:
- Shut Off Valve
- Flow Control Valve (Globe Style)
- Non Slam Check Valve
- Flow Metering Valve
- Straight Pattern Valve can be Converted to a Right Angle Pattern Valve
- Memory Indicator, Pointer & Scale
- Schrader Valve Metering Connections
- "O" Ring Sealed Valve Body
- Replaceable “Soft Seat”
- Low Pressure Drop (Equal to or Better than any Comparable Valve on the Market Today)
Specifications
Item Number | MPV040-4 |
Brand | Taco |
Connection Method | Flanged |
Connection Type | Flanged x Flanged |
Flow Capacity (Cv) | 357 |
Series | Plus Two Multi-Purpose Valve |
Size | 3" |
Type | Valve |
