Documents: LB-075-H-1LF
LB-075-H-1LF | LeakBreaker 3/4" NPT Water Heater Shut-Off Valve & Actuator | Taco (OBSOLETE)

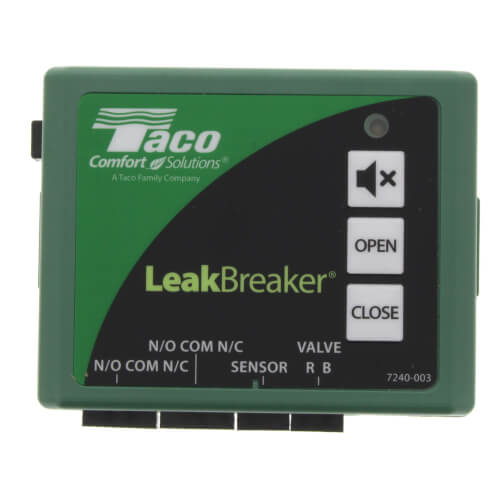

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LB-075-H-1LF
Overview Details for LB-075-H-1LF
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
The Taco LeakBreaker™ is a water heater leak protection device that protects against flood damage from the containment failure of a water heater. It consists of a control unit, a valve with actuator and a sensor. This resettable, testable protection device can be installed on any style water heater to shut off the incoming water supply, preventing additional water flow to a damaged water heater. The two-color LED light and audible alarm lets you know the status of LeakBreaker at all times.
Features:
Performance Data
LeakBreaker 3/4" NPT Water Heater Shut-Off Valve & Actuator
The Taco LeakBreaker™ is a water heater leak protection device that protects against flood damage from the containment failure of a water heater. It consists of a control unit, a valve with actuator and a sensor. This resettable, testable protection device can be installed on any style water heater to shut off the incoming water supply, preventing additional water flow to a damaged water heater. The two-color LED light and audible alarm lets you know the status of LeakBreaker at all times.
Features:
- 3/4" NPT
- Re-Settable
- Testable
- Quick Connect Wiring
- Operates on Batteries or Power Supply
- 2 Color LED Status Light
- Audible Alarm
- Alarm Mute
- 2 N/O; N/C Dry Contacts
- Full Port Valve
- Easy Removable Actuator
Performance Data
- Maximum Operating Pressure: 140 PSI
- Maximum Shut Off Pressure: 125 PSI
- Maximum Static Pressure: 300 PSI
- Maximum Ambient Temp: 135°
- Water Temp.: 33°F to 220°F
- Service: Potable Water
Specifications
Item Number | LB-075-H-1LF |
Brand | Taco |
Application | Plumbing |
Connection Size | 3/4" |
Connection Type | Threaded |
Max Ambient Temp (°F) | 135°F |
Max Operating Pressure | 140 PSI |
Type | Accessory |
Water Temperature | 33°F to 220°F |
