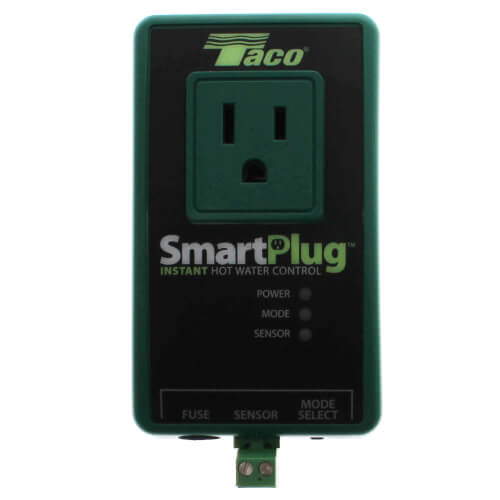

Taco SmartPlug Instant Hot Water Control

Overview:
The patented SmartPlug lets you upgrade any hot water recirculation pump with a power cord to "Smart" operation. Simply connect the SmartPlug to any 110V power outlet then plug the circulator power cord into the SmartPlug. Using a sensor that mounts to the hot water supply pipe, the SmartPlug will learn the daily hot water usage pattern in a home and adjust the circulator run time automatically. Hot water will always be available when needed.
No Programming, Timers or Aquastats Required • Sensor Included

Specifications:

• Input: 120VAC, 50/60HZ, single phase, 6A
• Output: 120VAC, 50/60HZ, Single phase, 1/2 hp (limited to 6 FLA, 36LRA)
• Sensor: NTC Thermistor,10K ohm @ 77°F
• Fuse: 125V, 6A, Medium Acting 5x20 mm glass, Littelfuse® p/n 0233006 mxp
• Ambient Operating Temp: 50-104°F, 10-40°C

Application:
The Taco SmartPlug Instant Hot Water Control® is designed to upgrade any hot water recirculation system. SmartPlug replaces inefficient timers and aquastats typically used in recirculation systems. It adds intelligence to your system by learning when hot water is used in the home. The pipe-mounted temperature sensor records daily hot water usage patterns during the course of a week. Recorded data is used to automatically run the circulator at the same times the following week. So hot water is always available when it's needed. If the usage pattern changes, the SmartPlug adjusts automatically. — No programming required.

Benefits:

• Easy to install: Upgrades any recirculation pump to "Smart" operation.
• Water conservation: The average residence can save up to 12,000 gallons* of water per year by eliminating the wait for hot water to arriveat fixtures and taps.
• Comfort and convenience: Hot water is available in seconds. No timers orprogramming required.
• Efficiency: “Smart” setting maximizes hot water comfort and energy savings.
• Reliability: The SmartPlug, when combined with a Taco domestic hot water circulator, provides whisper quiet operation and industry leading electronics for proven performance and dependability.

SmartPlug Control Options / Features:

• “Smart” Mode: When set to "Smart" mode,the SmartPlug monitors and records the home'shot water usage pattern over a 7 day period.The SmartPlug will use the preceding week's usagepattern to automatically cycle the circulator ON,so hot water is always available when it's needed.The recording and repeating process is continuous,week after week.
• “Pulse” Mode: When set to "Pulse" mode, theSmartPlug will continuously cycle the circulatorON for 5 minutes, then OFF for 10 minutes tomaintain hot water at all fixtures.
• Vacation Mode: After 36 hours of no hot waterusage, the SmartPlug will automatically turn thecirculator OFF and remain off until hot waterusage is detected.
• Exercise Function: While in vacation modethe SmartPlug will cycle the circulator for10 seconds every 7 days to prevent anycorrosion or scale build up
