CA10000-250 | CA EXPANSION TANK 10000L (2642GAL) 250PSI | Taco (OBSOLETE)

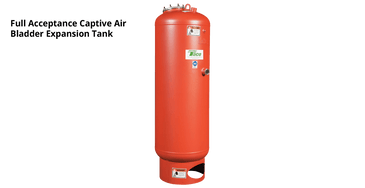

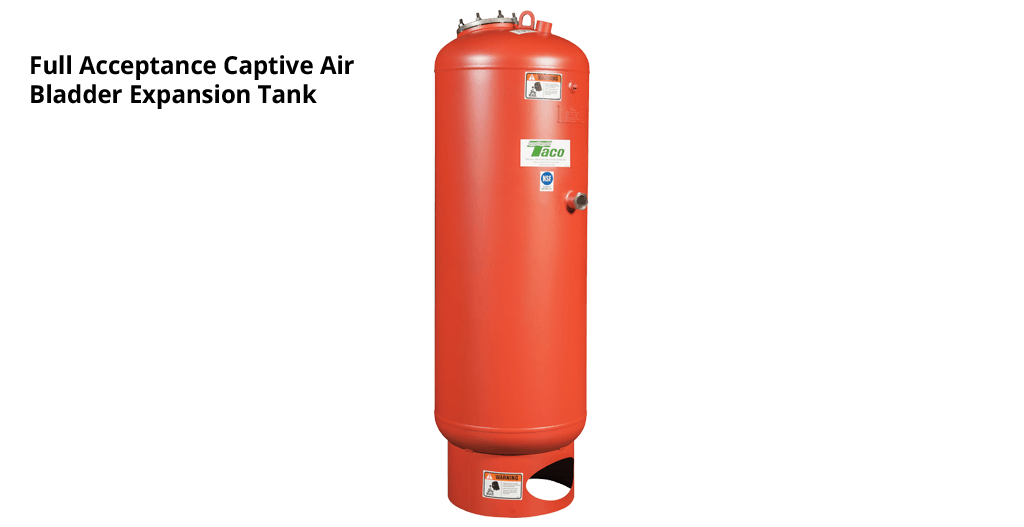

Taco | CA10000-250
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CA10000-250

Documents and manuals

Taco CA10000-250 Documents

Overview

Details for CA10000-250

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

CA EXPANSION TANK 10000L (2642GAL) 250PSI

Designed to Eliminate Direct Air-to-Water Interface

Taco CA Series Expansion Tanks are designed to solve a long time problem in the hydronics industry by utilizing a butyl rubber bladder to permanently separate the air charge from the system fluid in the expansion tank. In old style, non-bladder type tanks, the air to water interface allowed air to be absorbed back into the system fluid and carried to other parts of the system causing corrosion, inefficient balancing, pump capitation, air bound terminal units and waterlogged tanks. Proper sizing and location of air separation and air removal components can provide a stable, tight and closed hydronic system. In most properly sized “CA” systems, you can reduce the tank size by 80% compared to the old style, plain steel tanks.

Featuring a full acceptance type bladder, Taco CA Series Expansion Tanks offer the system designer and end user the comfort of long life expectancy as the bladder is large enough to expand to the wall of the tank in the event of a tank being undersized or improperly charged.

CA Series Expansion Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the Expansion Tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.

Performance Data

Capacity: 23-3962 Gallons (90-15000 Liters)
Diameters: 20-72″
Height: 29-282″
Working Pressure: 125,150,175, 250, 300 (PSI) Higher Pressures Optional
Max. Operating Temp.: 240°F (Optional 280°F)

Features
  • Designed, constructed and tested to ASME Section VIII, Div. 1 requirements.
  • Heavy Duty butyl rubber bladder
  • Full acceptance bladder design (field replaceable)
  • Carbon steel construction (SS system connection optional, SS construction optional)
  • All fabrication done in house
  • Computerized selections to ensure fast and easy design
  • National Board Registration
  • CRN registration (optional)
  • NSF/ANSI 61-G Certified and Listed (Optional)
Applications
  • LoadMatch® Systems
  • Commercial, Institutional, Industrial Hydronic Systems
  • Larger Systems
  • Systems where reliability and lower maintenance costs are important
  • Potable Water (optional)

Specifications

Item Number CA10000-250
Brand Taco
Series CA Expansion Tank
Type Expansion Tank
