1638 NS | Circulator Pump | Stainless Steel (NSF61) | 2 HP | 115V | Single Phase | 0.37A | 1750 RPM | Flanged | 125 PSI Max Press. | Series 1600 | Taco

Taco | 1638 NS

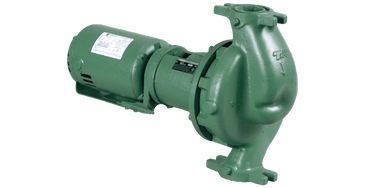

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1638 NS

Documents and manuals

Overview

Details for 1638 NS

Circulator Pump | Stainless Steel (NSF61) | 2 HP | 115V | Single Phase | 0.37A | 1750 RPM | Flanged | 125 PSI Max Press. | Series 1600

Designed for Reliable Performance and Easy Service

Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The exclusive 1600 Series In-Line Pumps cool-bearing cartridge design isolates the bearing from the effects of system temperatures to greatly extend bearing life. A standard bearing design also means that a single bearing cartridge can be used to service the entire line, making servicing a snap. Taco 1600 Series In-Line Pumps are available in 15 models ranging in performance capacity from 20 to 200 GPM with head capacities up to 68 ft.

Performance Data

Flow Range: 20 – 200 GPM
Head Range: 10′ – 68′
Working Pressure: 175 PSI with cold water, 125 PSI at rated temperatureTemperature: 250°F Standard, 300°F with Hi-Temp Seal
HP: ¼- 3
Sizes: 1 ½” – 2″

Features
  • Cartridge Assembly
  • One Piece Enclosed Impeller
  • Cupro-Nickel Shaft Sleeve
  • Standard Mechanical Seal
  • Flexible Coupler
  • Resilient Mounted Motor
Applications
  • LoadMatch®Systems
  • Air Conditioning Systems
  • Recirculation
  • Booster Service
  • Heating Systems
  • Laundry Equipment
  • Cooling Towers
  • Golf Courses
  • Dry Cleaning Plants
  • Livestock Watering
  • Bottle Washers
  • Lawn Sprinklers

Specifications

Item Number 1638 NS
Brand Taco
Amps 0.37A
Connection Flanged
HP 2 HP
Material Stainless Steel (NSF61)
Max Flow
Max Head Pressure
Max Pressue 125 PSI
Optional
Phase Single Phase
Pump Type Circulator Pump
RPM 1750 RPM
Series Series 1600
Type Pump
Voltage 115V
