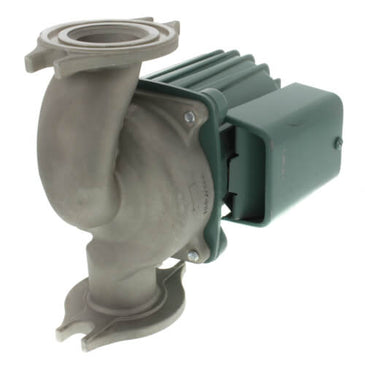

0010-SF3 | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Series 0010 | Taco

Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Series 0010

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-30 GPM
Head Range: 0-11.5 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Taco's High Velocity Series 0010 Cartridge Circulator is designed for quiet, efficient operation in a wide range of residential and light commercial, medium-head/medium-flow water circulating applications. Available in cast iron or stainless steel construction. Stainless steel is designed for all open-loop fresh water systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive, low-power consumption design is ideal for high efficiency jobs.

Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Stainless Steel Construction

Typical Applications
Hydronic Heating
Radiant Heating Primary-Secondary Loops
Indirect Water Heaters
Chilled Water Cooling
Potable Hot Water Systems

Replacement Parts List:
Casing O-Ring: 0010-008RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0010-022RP
