113-4S | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 113 | Taco

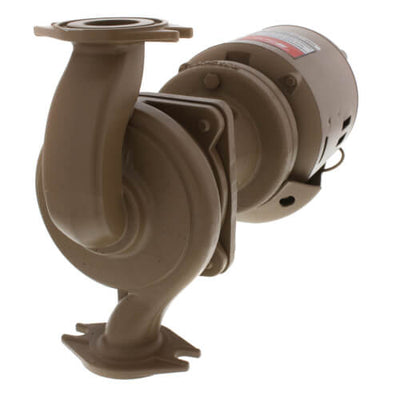

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 113-4S
Overview Details for 113-4S
Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 113
Taco 110-120 Series In-Line Circulators are designed to efficiently circulate heated or chilled water in residential or light commercial Hydronic Systems. These 110-120 Series In-Line Circulators may also be used for zoning large installations and are available in bronze or stainless steel construction for domestic hot water applications. 110-120 Series In-Line Circulators demonstrate proven performance, dependability, quiet operation and long lasting performance.
Performance Data
Flow Range: 0 – 68 GPM
Head Range: 0′ – 22′
Max. Fluid Temp.: 240°F
Max. Working Pressure: 125 PSI
HP: 1/12, 1/8, 1/6, 1/3
Connection Sizes: ¾” – 2″
Features
- Resilient mounted, split phase motor with built-in overload protector
- Equipped with sleeve bearings for quiet operation
- One piece non-ferrous impeller
- Stainless steel shaft
- Rugged bronze sleeve bearing
- Two piece carbon/ceramic seal assembly
- Durable one piece spring coupling
Applications
- Domestic Hot Water Heating Systems
- Domestic Hot Water Recirculation
- Hydronic Heating & Cooling
- Solar / Geothermal
Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.
Features:
- Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
- Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
- Factory Tested - Every circulator is operatedbefore shipment
- Easy, Low-Cost Service - No special tools required, nationwide parts availability
Specifications
Item Number | 113-4S |
Brand | Taco |
Amps | |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Flow Range (GPM) | 0-25 |
Head Range (ft.) | 0-17 |
Hertz | 60 |
Horse Power | 1/8 |
HP | 1/8 HP |
Material | Stainless Steel |
Max Flow (GPM) | 25 |
Max Flow | |
Max Head (Ft) | 17 |
Max Head Pressure | |
Max Pressue | 125 PSI |
Max Pressure (PSI) | 125 |
Max Temp (F) | 240°F |
Optional | |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 1725 |
RPM | 1725 RPM |
Series | Series 113 |
Type | Pump |
Voltage | 115v |
Warranty | 1 Year |
