Documents: 2400-50-3P

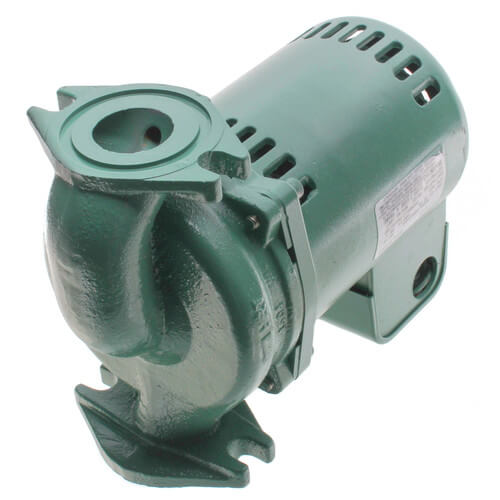

2400-50-3P | Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco
Overview Details for 2400-50-3P
Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400
For Medium-to-High Flow/Head Application
Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.
Performance Data
Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″
Features
- Compact, space saving design
- Powerful close-coupled, maintenance free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged ½ ” Stainless Steel Shaft
- Carbon/Silicon-Carbide mechanical seal for long life
- Universal flange to flange dimensions — Ideal for retrofits
- Anti-Condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
Applications
- Hydronic heating
- In-Floor Radiant
- Snow Melt
- High Pressure Drop Boilers
- Outdoor Wood Boilers
- Chilled Water Cooling
- Geothermal Heat Pumps
- Primary/Secondary Loops
- Hydro Air Fan Coils
- Domestic Water Recirculation Systems
Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.
The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.
Features:
- Compact, space saving design
- Powerful close-coupled, maintenance free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged 1/2" Stainless Steel Shaft
- Carbon/Silicon-Carbide mechanical seal for long life
- Universal flange to flange dimensions - Ideal for retrofits
- Anti-Condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
Specifications
Item Number | 2400-50-3P |
Brand | Taco |
Amperage | 4.9 |
Amps | 4.9A |
Application | Heating |
Connection Size | 3/4" |
Connection Type | Threaded |
Connection | Flanged |
Hertz | 60 |
Horse Power | 1/2 |
HP | 1/2 HP |
Material | Cast Iron |
Max Flow (GPM) | 38 |
Max Flow | 90 GPM |
Max Head (Ft) | 46 |
Max Head Pressure | 46ft |
Max Pressue | 150 PSI |
Max Pressure (PSI) | 150 |
Optional | |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3450 |
RPM | 3450 RPM |
Series | Series 2400 |
Temperature Range (F) | 40°F - 225°F |
Type | Pump |
Voltage | 115v |
