Details for 006-SC4-1

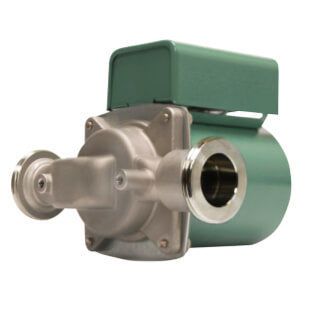

006 (Union) Stainless Steel Circulator, 1/40 HP
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
Performance Data
- Flow Range: 0-11 GPM
- Head Range: 0-9.5 Feet
- Minimum Fluid Temperature: 40°F (4°C)
- Maximum Fluid Temperature: 220°F (104°C)
- Maximum Working Pressure: 125 PSI
- Connection Sizes: 1/2" Sweat, 3/4" Sweat, 3/4" NPT or Union
Features
- Standard high capacity output - Compact design
- Quiet, efficient operation
- Direct drive - Low power consumption
- Unique replaceable cartridge design - Field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Low-lead Bronze sweat or Stainless Steel with threaded or union connections
Typical Applications
- Hydronic heating
- Domestic hot water recirculation
- Hydro-air heating/cooling
- Heat recovery units
- Water source heat pumps
- Drain down open loop Solar systems
- Potable water applications
Replacement Parts List:
- Casing O-Ring: 007-003RP
- Capacitor or PC Board: 007-002RP
- Cartridge Assembly Complete: 005-020RP
Specifications
| Item Number | 006-SC4-1 |
| Brand | Taco |
| Amperage | 0.52 |
| Amps | 0.57A |
| Application | Heating |
| Connection Type | Union |
| Connection | Union |
| Flow Range (GPM) | 0-11 |
| Head Range (ft.) | 0-9.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Stainless Steel |
| Max Flow (GPM) | 11 |
| Max Flow | 11.5 GPM |
| Max Head (Ft) | 9 |
| Max Head Pressure | 9.5ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 006 |
| Temperature Range (F) | 40°F - 220°F |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
