112-14S | Circulator Pump | Stainless Steel | 1/3 HP | 115V | Single Phase | 3450 RPM | Flanged | 125 PSI Max Press. | Series 112 | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 112-14S

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Taco 112-14S Documents

Datasheet Installation Instructions More Info

Overview

Details for 112-14S

Taco 110-120 Series In-Line Circulators are designed to efficiently circulate heated or chilled water in residential or light commercial Hydronic Systems. These 110-120 Series In-Line Circulators may also be used for zoning large installations and are available in bronze or stainless steel construction for domestic hot water applications. 110-120 Series In-Line Circulators demonstrate proven performance, dependability, quiet operation and long lasting performance.

Performance Data

Flow Range: 0 – 68 GPM
Head Range: 0′ – 22′
Max. Fluid Temp.: 240°F
Max. Working Pressure: 125 PSI
HP: 1/12, 1/8, 1/6, 1/3
Connection Sizes: ¾” – 2″

Features

Resilient mounted, split phase motor with built-in overload protector
Equipped with sleeve bearings for quiet operation
One piece non-ferrous impeller
Stainless steel shaft
Rugged bronze sleeve bearing
Two piece carbon/ceramic seal assembly
Durable one piece spring coupling

Applications

Domestic Hot Water Heating Systems
Domestic Hot Water Recirculation
Hydronic Heating & Cooling
Solar / Geothermal

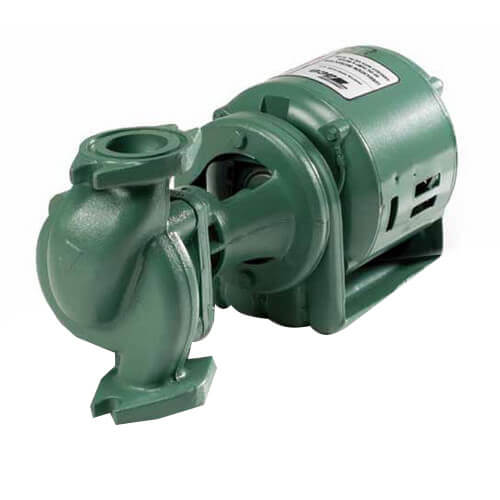

**NOTE: Image depicts cast iron

Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.

Features:

Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
Factory Tested - Every circulator is operatedbefore shipment
Easy, Low-Cost Service - No special tools required, nationwide parts availability

Specifications

Item Number	112-14S
Brand	Taco
Amps
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-34
Head Range (ft.)	0-22
Hertz	60
Horse Power	1/3
HP	1/3 HP
Material	Stainless Steel
Max Flow (GPM)	34
Max Flow
Max Head (Ft)	22
Max Head Pressure
Max Pressue	125 PSI
Max Pressure (PSI)	125
Max Temp (F)	240°F
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3450
RPM	3450 RPM
Series	Series 112
Type	Pump
Voltage	115v
Warranty	1 Year
