111-8S | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 111 | Taco

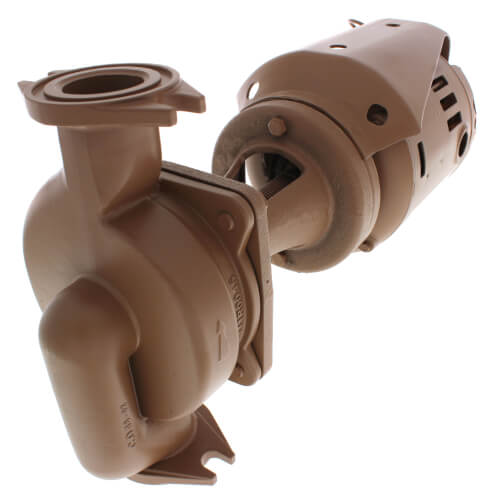

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 111-8S

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Taco 111-8S Documents

Datasheet Installation Instructions More Info

Overview

Details for 111-8S

Taco 110-120 Series In-Line Circulators are designed to efficiently circulate heated or chilled water in residential or light commercial Hydronic Systems. These 110-120 Series In-Line Circulators may also be used for zoning large installations and are available in bronze or stainless steel construction for domestic hot water applications. 110-120 Series In-Line Circulators demonstrate proven performance, dependability, quiet operation and long lasting performance.

Performance Data

Flow Range: 0 – 68 GPM
Head Range: 0′ – 22′
Max. Fluid Temp.: 240°F
Max. Working Pressure: 125 PSI
HP: 1/12, 1/8, 1/6, 1/3
Connection Sizes: ¾” – 2″

Features

Resilient mounted, split phase motor with built-in overload protector
Equipped with sleeve bearings for quiet operation
One piece non-ferrous impeller
Stainless steel shaft
Rugged bronze sleeve bearing
Two piece carbon/ceramic seal assembly
Durable one piece spring coupling

Applications

Domestic Hot Water Heating Systems
Domestic Hot Water Recirculation
Hydronic Heating & Cooling
Solar / Geothermal

**NOTE: Image depicts cast iron.

Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations. This model comes in stainless steel construction

Features:

Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
Factory Tested - Every circulator is operatedbefore shipment
Easy, Low-Cost Service - No special tools required, nationwide parts availability

Specifications

Item Number	111-8S
Brand	Taco
Amps
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-50
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/8
HP	1/8 HP
Material	Stainless Steel
Max Flow (GPM)	50
Max Flow
Max Head (Ft)	12
Max Head Pressure
Max Pressue	125 PSI
Max Pressure (PSI)	125
Max Temp (F)	240°F
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	1725
RPM	1725 RPM
Series	Series 111
Type	Pump
Voltage	115v
Warranty	1 Year
