Documents: 111-8

Datasheet Installation Instructions More Info

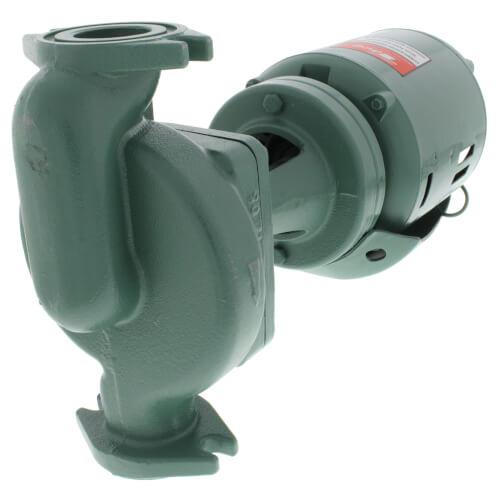

111-8 | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 111 | Taco

Brand: TacoSKU: 111-8

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 111-8

Overview & Specifications Reviews Parts & Accessories

Overview Details for 111-8

Taco 110-120 Series In-Line Circulators are designed to efficiently circulate heated or chilled water in residential or light commercial Hydronic Systems. These 110-120 Series In-Line Circulators may also be used for zoning large installations and are available in bronze or stainless steel construction for domestic hot water applications. 110-120 Series In-Line Circulators demonstrate proven performance, dependability, quiet operation and long lasting performance.

Performance Data

Flow Range: 0 – 68 GPM
Head Range: 0′ – 22′
Max. Fluid Temp.: 240°F
Max. Working Pressure: 125 PSI
HP: 1/12, 1/8, 1/6, 1/3
Connection Sizes: ¾” – 2″

Features

Resilient mounted, split phase motor with built-in overload protector
Equipped with sleeve bearings for quiet operation
One piece non-ferrous impeller
Stainless steel shaft
Rugged bronze sleeve bearing
Two piece carbon/ceramic seal assembly
Durable one piece spring coupling

Applications

Domestic Hot Water Heating Systems
Domestic Hot Water Recirculation
Hydronic Heating & Cooling
Solar / Geothermal

Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.

Features:

Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
Factory Tested - Every circulator is operatedbefore shipment
Easy, Low-Cost Service - No special tools required, nationwide parts availability

Specifications

Item Number	111-8
Brand	Taco
Amps
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-50
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/8
HP	1/8 HP
Material	Cast Iron
Max Flow (GPM)	50
Max Flow
Max Head (Ft)	12
Max Head Pressure
Max Pressue	125 PSI
Max Pressure (PSI)	125
Max Temp (F)	240°F
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	1725
RPM	1725 RPM
Series	Series 111
Type	Pump
Voltage	115v
Warranty	1 Year
