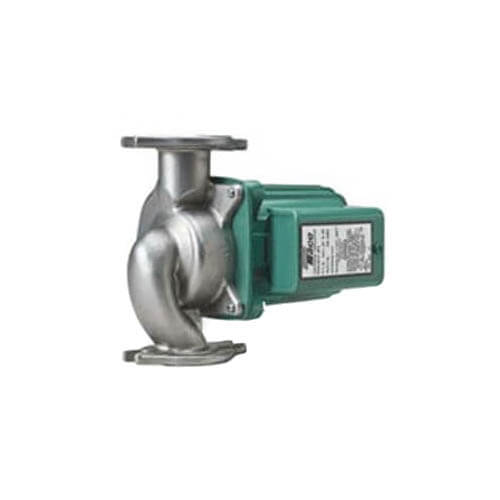

00R-SF6-IFC | Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.75A | 3250 RPM | Flanged | 12.5 GPM | 15ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 00R | Taco

Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.75A | 3250 RPM | Flanged | 12.5 GPM | 15ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 00R

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 00R-IFC Radiant Heating circulator with Integral Flow Check specifically fits the higher head and lower flow designs used in many Radiant Heating systems. The circulator's performance curve deliversflow that can be used in a wide combination of tube diameters and length of runs. The removable, spring loaded Integral Flow Check (IFC) prevents gravity flow/reverse flow. By locating the IFC inside the pump casing, a separate in-line flow check is eliminated, simplifying piping and reducing installation costs. It also makes for a modern, clean looking job when mounting the pump in vertical runs of pipe, pumping away from the boiler. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. Available in Cast Iron and Stainless Steel construction.

Features:

• Specifically designed for radiant heating applications
• Integral Flow Check: Simplifies piping, Prevents reverse flow and gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
• LED indicator light
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-maintenance free
• Quiet, efficient operation
• Self lubricating, No mechanical seal
• Wide range of applications
• Flanged connections

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-045RP
Valve Addembly Trans/Relay: 0010-025RP
