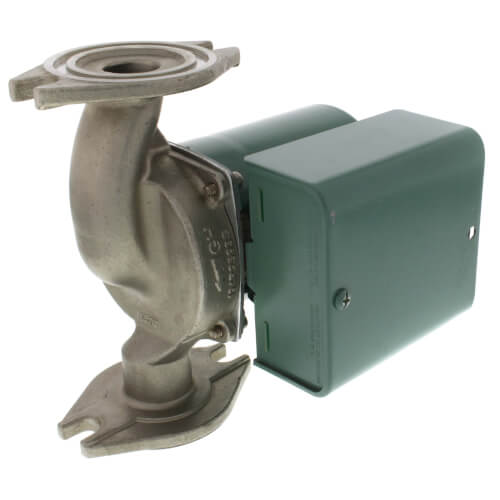

008-ZSF6-IFC | Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 12.5 GPM | 15ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 008 | Taco
Documents and manuals
Taco 008-ZSF6-IFC Documents
Overview
Details for 008-ZSF6-IFC
Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 12.5 GPM | 15ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 008
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Features
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability
- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
Specifications
| Item Number | 008-ZSF6-IFC |
| Brand | Taco |
| Amperage | 0.84 |
| Amps | 0.84A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-12.5 |
| Head Range (ft.) | 0-15 |
| Hertz | 60 |
| Horse Power | 1/25 |
| HP | 1/25 HP |
| Material | Stainless Steel |
| Max Flow (GPM) | 12.5 |
| Max Flow | 12.5 GPM |
| Max Head (Ft) | 15 |
| Max Head Pressure | 15ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Optional | Integral Flow Check |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 008 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Pump |
| Voltage | 115v |
