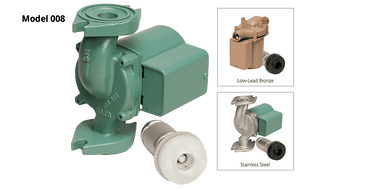

008-VVSF6 | Circulator Pump (Variable Speed) | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008 | Taco
Overview Details for 008-VVSF6
Circulator Pump (Variable Speed) | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Variable speed circulators are one of the best ways to improve circulation, and system, efficiency. By scaling the rate of temperature mixing to the specific conditions in your system, variable speed circulators help to prevent short-cycling and overheating of small zones. They can maintain setpoint temperatures or pressure differentials in your system and easily integrates easily into many building management systems. The universal flange-to-flange dimension of Taco's "00" series circulators makes installation quick, even if you are replacing a different pump. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
Features:
- Variable Voltage Operation: 00-VV circulators are among the most versatile variable speed circulators. Because they accept simple analog voltage inputs, it is easy to incorporate a variable voltage circulator into any system
- Maintenance Free: Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design: All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency: In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- UL Approved
Specifications
Item Number | 008-VVSF6 |
Brand | Taco |
Amperage | 0.84 |
Amps | 0.84A |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Head Range (ft.) | 0-15 |
Hertz | 60 |
Horse Power | 1/25 |
HP | 1/25 HP |
Material | Stainless Steel |
Max Flow | 14 GPM |
Max Head (Ft) | 15 |
Max Head Pressure | 16ft |
Max Pressue | 125 PSI |
Max Pressure (PSI) | 125 |
Optional | |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump (Variable Speed) |
RPM | 3250 |
RPM | 3250 RPM |
Series | Series 008 |
Type | Pump |
Type | Var. Speed Pump |
Voltage | 115v |
Warranty | 3 Year |
