008-VTSF6 | Circulator Pump (Variable Speed) | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008 | Taco
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: TacoSKU: 008-VTSF6

Web Price:

$1,093.93
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

008-VTSF6 | Circulator Pump (Variable Speed) | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008 | Taco

Taco | 008-VTSF6

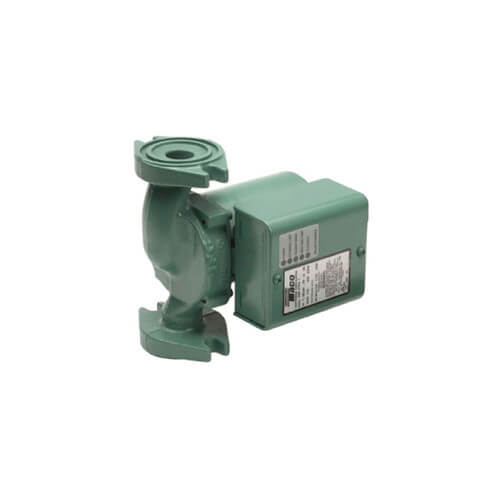

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 008-VTSF6

Documents and manuals

Taco 008-VTSF6 Documents

Overview

Details for 008-VTSF6

Circulator Pump (Variable Speed) | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Solar hydronic systems can be a great way to improve the energy efficiency of your home while reducing your environmental footprint. To help you achieve the full savings potential of these systems, Taco has developed a variable speed circulator specifically for solar applications. Variable speed circulator operation is ideal for solar applications, where heat production varies greatly. By adjusting the flow rate based on the temperature differential between the collector and your storage system, the solar variable speed circulator optimizes the heat transfer process. Getting the most out of your solar system doesn't have to be difficult. The solar variable speed circulator's line cord is wired at the factory for fast installation. It features freeze protection and a holiday function for safe, automated maintenance of your system while you are away. The universal flange-to-flange dimension of Taco's "00" series circulators makes installation quick, even if you are replacing a different pump. With Taco, your hydronic circulation is in good hands.

Features:
  • Variable Speed, Superior Efficiency - The variable speed motor in this circulator will scale the output to match the collector, providing efficient energy transfer and up to a 20% increase in performance for your solar system.
  • Expansion Versatility - The included line voltage output may be configured by users. Adding additional equipment to your system couldn't be easier.
  • Maintenance Free - The beauty of Taco's "00" series circulators is in the simplicity. The self-lubricating design improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design - All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency - In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.

Specifications

Item Number 008-VTSF6
Brand Taco
Amperage 0.84
Amps 0.84A
Application Heating
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-14
Head Range (ft.) 0-15
Horse Power 1/25
HP 1/25 HP
Material Stainless Steel
Max Flow (GPM) 14
Max Flow 14 GPM
Max Head (Ft) 15
Max Head Pressure 16ft
Max Pressue 125 PSI
Max Pressure (PSI) 125
Max Temp (F) 230°F
Optional
Phase Single Phase
Pump Type Circulator Pump (Variable Speed)
RPM 3250
RPM 3250 RPM
Series Series 008
Type Pump
Type Var. Speed Pump
Voltage 115v
