008-SF6 | Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008 | Taco

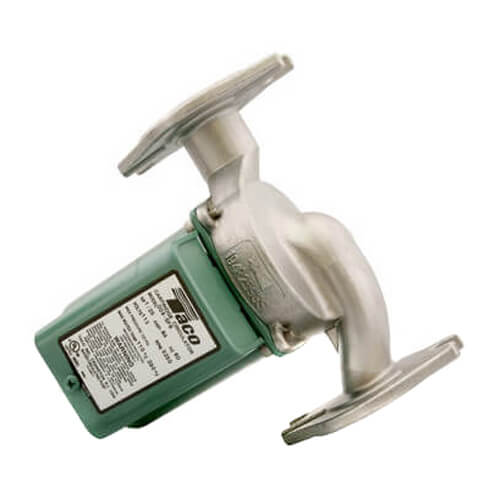

Taco | 008-SF6
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 008-SF6

Documents and manuals

Overview

Details for 008-SF6

Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 14 GPM | 16ft Max Head | 125 PSI Max Press. | Series 008

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The Taco Model 008 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head heat recovery, water source heat pumps, open-loop solar heat and domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive, low-power consumption design is ideal for high efficiency jobs.

Performance Data
Flow Range: 0-14 GPM
Head Range: 0-16 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged, 3/4" Sweat

Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Optional Sweat Connections

Typical Applications
Hydronic Heating
Radiant In-Floor/Panel Heating
Closed-Loop Solar Heating Systems

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-045RP

Specifications

Item Number 008-SF6
Brand Taco
Amperage 0.84
Amps 0.84A
Application Heating
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-14
Head Range (ft.) 0-16
Hertz 60
Horse Power 1/25
HP 1/25 HP
Material Stainless Steel
Max Flow (GPM) 14
Max Flow 14 GPM
Max Head (Ft) 16
Max Head Pressure 16ft
Max Pressue 125 PSI
Max Pressure (PSI) 125
Optional
Phase 1
Phase Single Phase
Pump Type Circulator Pump
RPM 3250
RPM 3250 RPM
Series Series 008
Temperature Range (F) 40°F to 230°F
Type Pump
Voltage 115v
Warranty 3 Year
