007-VVF5 | Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007 | Taco (OBSOLETE)

Brand: TacoSKU: 007-VVF5

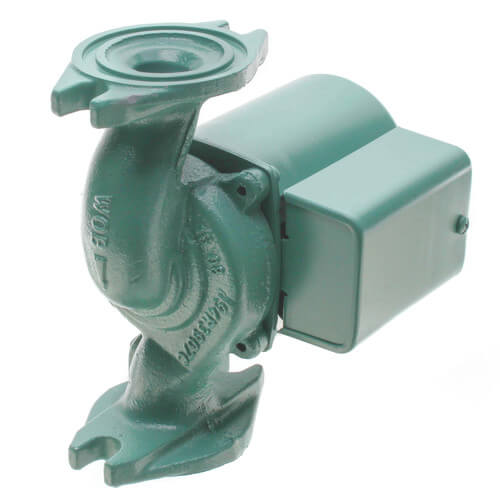

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 007-VVF5

Overview & Specifications Reviews Parts & Accessories

Overview Details for 007-VVF5

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Variable speed circulators are one of the best ways to improve circulation, and system, efficiency. By scaling the rate of temperature mixing to the specific conditions in your system, variable speed circulators help to prevent short-cycling and overheating of small zones. They can maintain setpoint temperatures or pressure differentials in your system and easily integrates easily into many building management systems. The universal flange-to-flange dimension of Taco's "00" series circulators makes installation quick, even if you are replacing a different pump. With Taco, your hydronic circulation is in good hands.

Features:

Variable Voltage Operation - 00-VV circulators are among the most versatile variable speed circulators. Because they accept simple analog voltage inputs, it is easy to incorporate a variable voltage circulator into any system.
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron Construction

Typical Applications:

Hydronic Heating
Radiant Heating
Hydro-Air Fan Coils
Indirect Water Heating
Chilled Water Cooling

Specifications

Item Number	007-VVF5
Brand	Taco
Amperage	0.71
Amps	0.71A
Application	Zoning
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-23
Head Range (ft.)	0-10
Hertz	60
Horse Power	1/25
HP	1/25 HP
Material	Cast Iron
Max Flow (GPM)	23
Max Flow	23 GPM
Max Head (Ft)	10
Max Head Pressure	10ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump (Variable Speed)
RPM	3250
RPM	3250 RPM
Series	Series 007
Temperature Range (F)	40°F - 240°F
Type	Pump
Voltage	115V
Warranty	3 Year
