006-VSF4 | Circulator Pump (Variable Speed) | Cast Iron | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Flanged | 10 GPM | 9ft Max Head | 125 PSI Max Press. | Series 006 | Taco
Documents and manuals
Taco 006-VSF4 Documents
Overview
Details for 006-VSF4
Circulator Pump (Variable Speed) | Cast Iron | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Flanged | 10 GPM | 9ft Max Head | 125 PSI Max Press. | Series 006
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

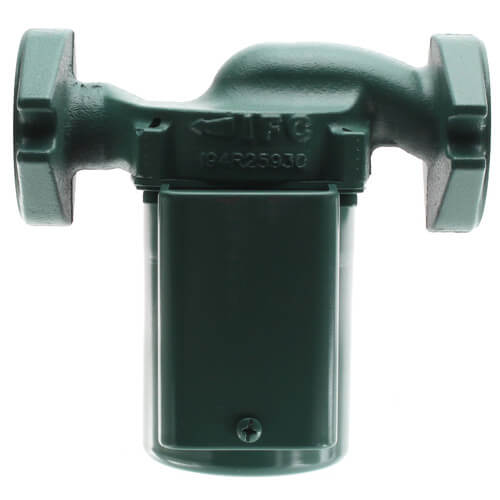

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The compact Taco 006 Cartridge Circulator is designed for circulating hot and chilled freshwater in a wide range of open and closed loop applications. Its unique, field-serviceablecartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. Withno mechanical seal, the self-lubricating, maintenance free design provides quiet, efficientoperation and unmatched reliability. Available in Low-Lead Bronze, sweat or StainlessSteel, threaded or union connections.
Features
- Standard High Capacity Output, CompactDesign
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable CartridgeDesign-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability- Maintenance Free
- Low-Lead Bronze or Stainless SteelConstruction with Sweat, Threadedor Union Connections
Specifications
| Item Number | 006-VSF4 |
| Brand | Taco |
| Amperage | 0.52 |
| Amps | 0.52A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-11 |
| Head Range (ft.) | 0-9.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 11 |
| Max Flow | 10 GPM |
| Max Head (Ft) | 9.5 |
| Max Head Pressure | 9ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump (Variable Speed) |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 006 |
| Temperature Range (F) | 40°F - 220°F |
| Type | Pump |
| Type | Var. Speed Pump |
| Voltage | 115v |
| Warranty | 3 Year |
