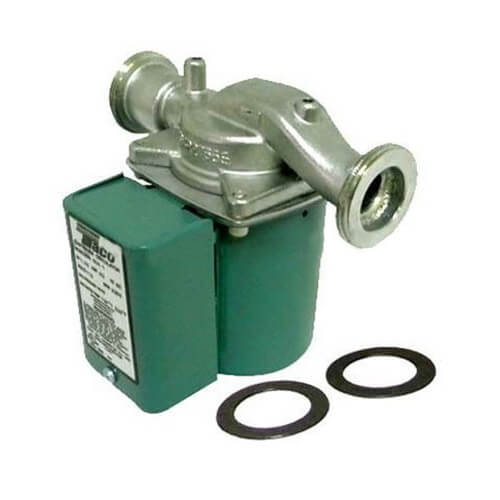

006-SC7-IFC | Circulator Pump | Stainless Steel | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Union | 9 GPM | 8.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 006 | Taco
Documents and manuals
Taco 006-SC7-IFC Documents
Overview
Details for 006-SC7-IFC
Circulator Pump | Stainless Steel | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Union | 9 GPM | 8.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 006
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
The 006-IFC with an Integral Flow Check (IFC®) is designed for the circulation of hotor chilled fresh water in open or closed loop applications. The IFC feature simplifiespiping, eliminates separate in-line flow check, reduces installation costs andimproves system performance. With its patented location at the impeller inlet, theIFC is easy to service without removing the entire unit from system piping. Theunique, replaceable cartridge contains all of the moving parts and allows for easyservice instead of replacing the entire circulator.
Features:
- Integral Flow Check (IFC®) Patent# 5,664,939
- Prevents gravity flow / reverse flow
- Eliminates separate in-line flow check
- Reduces installed cost
- Improves system performance
- Easy to service
- Unique replaceable cartridge - field serviceable
- Unmatched reliability-Maintenance free
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Wide Range of applications
- Bronze Construction with 1/2" & 3/4"
- Sweat Connections or Stainless Steel
- Union Connections
Specifications
| Item Number | 006-SC7-IFC |
| Brand | Taco |
| Amperage | 0.52 |
| Amps | 0.52A |
| Application | Zoning |
| Connection Type | Flanged x Flanged |
| Connection | Union |
| Flow Range (GPM) | 0-9 |
| Head Range (ft.) | 0-8.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Stainless Steel |
| Max Flow (GPM) | 9 |
| Max Flow | 9 GPM |
| Max Head (Ft) | 8.5 |
| Max Head Pressure | 8.5ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Optional | Integral Flow Check |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 006 |
| Temperature Range (F) | 40°F to 220°F |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
