006-F4 | Circulator Pump | Cast Iron | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Flanged | 10 GPM | 9ft Max Head | 125 PSI Max Press. | Series 006 | Taco

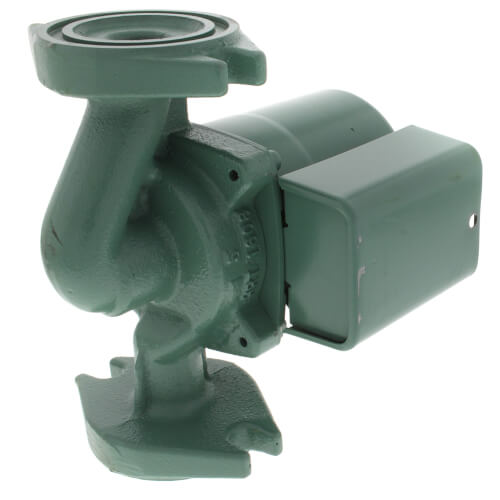

Taco | 006-F4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 006-F4

Documents and manuals

Overview

Details for 006-F4

Circulator Pump | Cast Iron | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Flanged | 10 GPM | 9ft Max Head | 125 PSI Max Press. | Series 006

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators

Performance Data
Flow Range: 0-10 GPM
Head Range: 0-9 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 220+F (104+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" CI Flanged or 1/2" Swt, 3/4" Swt, 3/4" NPT, or Union
The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.

Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Direct Drive-Low Power Consumption
Unique Replaceable Cartridge Design-Field Serviceable
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Cast Iron, Flanged or Bronze Construction with Sweat, Threaded or Union Connections

Typical Applications
Hydronic heating
Domestic hot water recirculation
Hydro-air heating/cooling
Heat recovery units
Water source heat pumps
Drain down open loop solar systems
Potable water applications

Replacement Parts List:
Casing O-Ring: 007-003RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-019RP

Specifications

Item Number 006-F4
Brand Taco
Amperage 0.52
Amps 0.52A
Application Heating
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-10
Head Range (ft.) 0-9
Hertz 60
Horse Power 1/40
HP 1/40 HP
Material Cast Iron
Max Flow (GPM) 10
Max Flow 10 GPM
Max Head (Ft) 9
Max Head Pressure 9ft
Max Pressue 125 PSI
Max Pressure (PSI) 125
Optional
Phase 1
Phase Single Phase
Pump Type Circulator Pump
RPM 3250
RPM 3250 RPM
Series Series 006
Temperature Range (F) 40°F to 230°F
Type Pump
Voltage 115v
Warranty 3 Year
