005-F2-3IFC | Circulator Pump | Cast Iron | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 005 | Taco (OBSOLETE)
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: TacoSKU: 005-F2-3IFC
Availability: DISCONTINUED
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

005-F2-3IFC | Circulator Pump | Cast Iron | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 005 | Taco (OBSOLETE)

Taco | 005-F2-3IFC

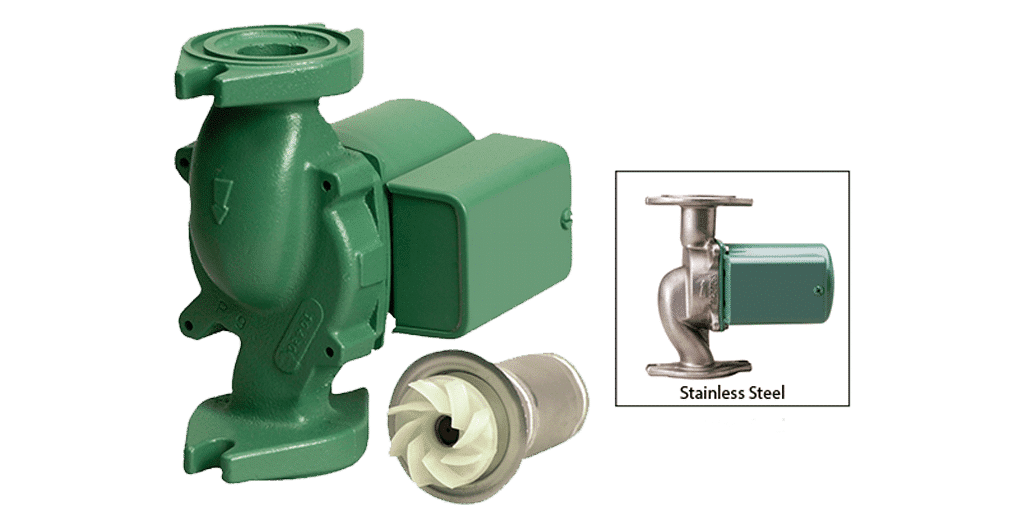

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 005-F2-3IFC

Documents and manuals

Taco 005-F2-3IFC Documents

Overview

Details for 005-F2-3IFC

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Circulator Pump | Cast Iron | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 005

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Specifications

Item Number 005-F2-3IFC
Brand Taco
Amps 0.54A
Connection Flanged
HP 1/35 HP
Material Cast Iron
Max Flow 19 GPM
Max Head Pressure 9ft
Max Pressue 125 PSI
Optional
Optional Integral Flow Check
Phase Single Phase
Pump Type Circulator Pump
RPM 3250 RPM
Series Series 005
Type Pump
Voltage 115V
