Documents: 003-BC4-10PNP

Datasheet Installation Instructions More Info

003-BC4-10PNP | CIRCULATOR BRONZE 3/4" SWEAT INTEGRAL FLOW CHECK DIGITAL | Taco

Brand: TacoSKU: 003-BC4-10PNP

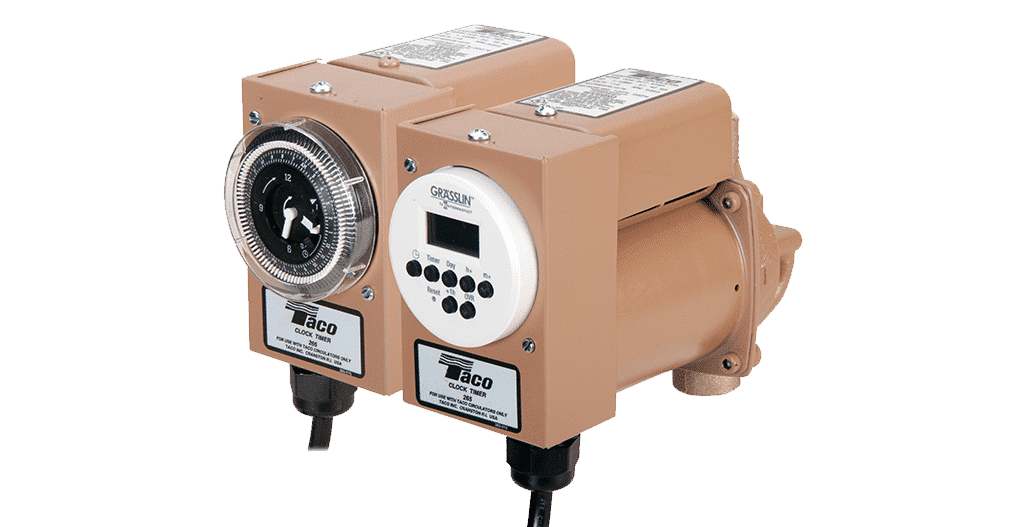

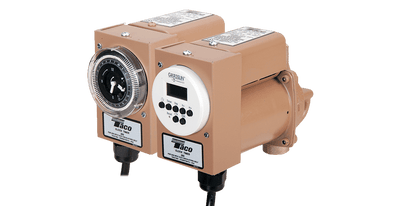

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 003-BC4-10PNP

Overview & Specifications Reviews Parts & Accessories

Overview Details for 003-BC4-10PNP

CIRCULATOR BRONZE 3/4" SWEAT INTEGRAL FLOW CHECK DIGITAL

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Specifications

Item Number	003-BC4-10PNP
Brand	Taco
Amps	0.43A
Connection	Sweat (3/4")
HP	1/40 HP
Material	Bronze
Max Flow	7 GPM
Max Head Pressure	4.5ft
Max Pressue	125 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250 RPM
Series	Series 003
Type	Pump
Voltage	115V
