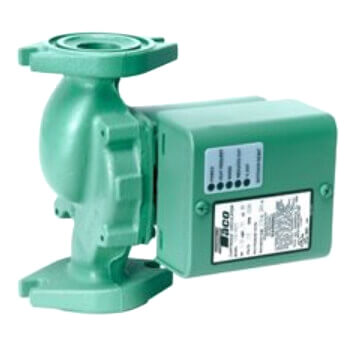

0014-VVF1 | Circulator Pump (Variable Speed) | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014 | Taco
Documents and manuals
Taco 0014-VVF1 Documents
Overview
Details for 0014-VVF1
Circulator Pump (Variable Speed) | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
The High Velocity series Taco 0014 cartridge circulator is designed for quiet, efficient operation in medium head / medium flow applications on large residential / light commercial systems. Ideal for hydronic heating, radiant heating, chilled water cooling and open loop domestic fresh water systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0014 is ideal for high efficiency jobs where space is a premium. Available in Cast Iron or Stainless Steel construction.
Product Features
- High Velocity Performance - Compact Design
- Quiet, efficient operation
- Direct drive - Low power consumption
- Unique Replaceable Cartridge design (Field serviceable)
- Self Lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Universal flange to flange dimension
- Cast Iron or Stainless Steel Construction
Specifications
| Item Number | 0014-VVF1 |
| Brand | Taco |
| Amperage | 1.45 |
| Amps | 1.45A |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Hertz | 60 |
| Horse Power | 1/8 |
| HP | 1/8 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 32 |
| Max Flow | 32 GPM |
| Max Fluid Temp | 230°F |
| Max Head (Ft) | 22 |
| Max Head Pressure | 22ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump (Variable Speed) |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 0014 |
| Type | Pump |
| Type | Var. Speed Pump |
| Voltage | 115v |
