0014-SF1Y | Circulator Pump | Stainless Steel | 1/8 HP | 230V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014 | Taco
Documents and manuals
Taco 0014-SF1Y Documents
Overview
Details for 0014-SF1Y
Circulator Pump | Stainless Steel | 1/8 HP | 230V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014
![](https://supplyfile.com/images/taco/badge_taco.png)
Application

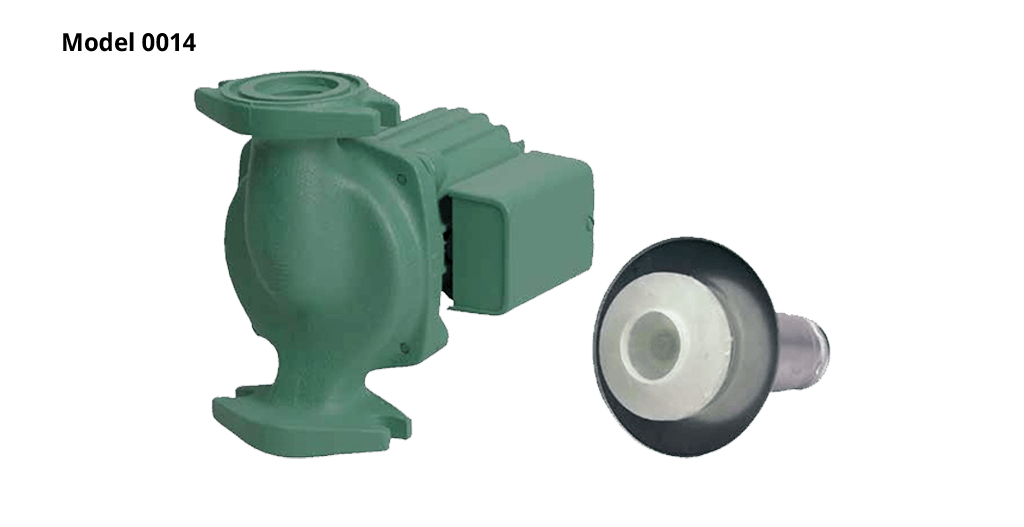

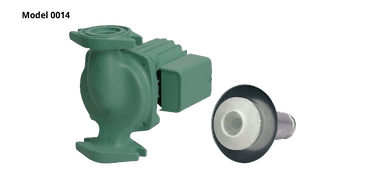

The Taco 0014 is specifically designed for medium head/medium flow
applications in large residential and light commercial systems. Ideal for large
BTUH boilers, primary/secondary loops, commercial water heaters, and light
commercial heating and cooling systems. The Stainless Steel 0014 should be
used on open loop systems. The unique replaceable cartridge contains all of
the moving parts and allows for easy service instead of replacing the entire
circulator. Universal flange to flange dimensions and orientation allows the
0014 to easily replace other models. The compact, direct-drive, low power
consumption design makes it ideal for high-efficiency jobs.
Features
• High Velocity performance — Compact design
• Quiet, efficient operation
• Direct drive - Low power consumption
• Unique replaceable cartridge design — Field serviceable
• Self lubricating
• No mechanical seal
• Unmatched reliability — Maintenance free
• Universal flange to flange dimensions
• Cast Iron or Stainless Steel construction
Specifications
Item Number | 0014-SF1Y |
Brand | Taco |
Amps | 1.45A |
Connection | Flanged |
HP | 1/8 HP |
Material | Stainless Steel |
Max Flow | 32 GPM |
Max Head Pressure | 22ft |
Max Pressue | 125 PSI |
Optional | |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 RPM |
Series | Series 0014 |
Type | Pump |
Voltage | 230V |
