0014-SF1A | Circulator Pump | Stainless Steel | 1/8 HP | 230V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014 | Taco

Brand: TacoSKU: 0014-SF1A

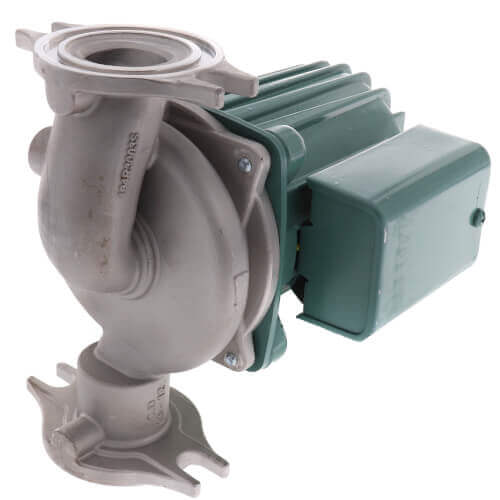

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 0014-SF1A

Overview & Specifications Reviews Parts & Accessories

Overview Details for 0014-SF1A

Circulator Pump | Stainless Steel | 1/8 HP | 230V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Please note this circulator is 50Hz and the standard frequency for the US is 60Hz. For further information please call Customer Support

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Taco 0014 is specifically designed for medium head / medium flow applications in large residential and light commercial systems. Ideal for large BTUH boilers, primary/secondary loops, commercial water heaters, and light commercial heating and cooling systems. The Stainless Steel 0014 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0014 to easily replace other models. The compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs.

Performance Data
Flow Range: 0-32
GPM Head Range: 0-22 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Features:
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Stainless Steel Construction

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0014-003RP

Specifications

Item Number	0014-SF1A
Brand	Taco
Amperage	0.82
Amps	1.45A
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-32
Head Range (ft.)	0-22
Hertz	50
Horse Power	1/8
HP	1/8 HP
Material	Stainless Steel
Max Flow (GPM)	32
Max Flow	32 GPM
Max Head (Ft)	22
Max Head Pressure	22ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	2750
RPM	3250 RPM
Series	Series 0014
Temperature Range (F)	40°F to 230°F
Type	Pump
Voltage	220v
Voltage	230V
Warranty	3 Year
