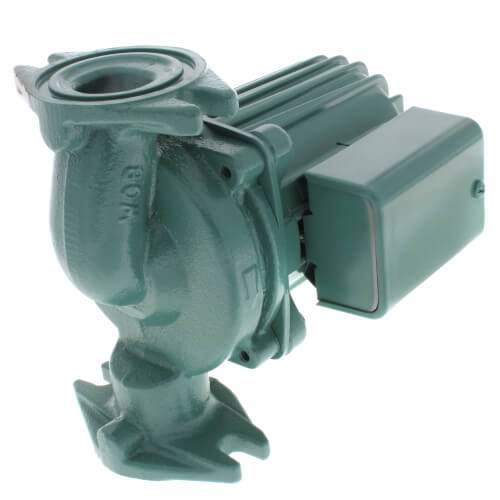

0014-F1-1IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0014 | Taco
Overview Details for 0014-F1-1IFC
Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0014
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Performance Data
Flow Range: 0-29 GPM
Head Range: 0-23 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2 Flanged
The 0014-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with "00" circulators on medium head/medium flow Hydronic or Radiant heating, Hydro-Air Fan Coils or closed loop solar heating systems. by locating the patented IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. The 0014-Z-IFC combines the circulator, flow-check and patented Priority Zoning control with built-in transformer, relay and priority switch in one complete, compact package to make it ideal for zoning.
Features
* Integral Flow Check (IFC) Patent# 5,664,939
Prevents gravity flow
Eliminates separate in-line flow check
Reduces installed cost, easy to service
Improved performance vs. In-line flow checks
* Unique replaceable cartridge-Field serviceable
* Unmatched Reliability --Maintenance Free
* Quiet, efficient operation
* Direct drive-Low power consumption
* Self-lubricating, No mechanical seal
* Standard high capacity output-Compact design
* Wide range of applications
* Cast Iron or Bronze Construction, Flanged connections
Typical Applications
* Medium head/medium flow Hydronic or Radiant heating
* Hydro-Air Fan Coils
* Closed loop solar heating systems
Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0014-004RP
Valve Assembly Trans/Relay: 0012-021RP
Specifications
Item Number | 0014-F1-1IFC |
Brand | Taco |
Amperage | 1.55 |
Amps | 1.45A |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Flow Range (GPM) | 0-29 |
Head Range (ft.) | 0-23 |
Hertz | 60 |
Horse Power | 1/8 |
HP | 1/8 HP |
Material | Cast Iron |
Max Flow (GPM) | 29 |
Max Flow | 32 GPM |
Max Head (Ft) | 23 |
Max Head Pressure | 22ft |
Max Pressue | 125 PSI |
Max Pressure (PSI) | 125 |
Optional | |
Optional | Integral Flow Check |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 |
RPM | 3250 RPM |
Series | Series 0014 |
Temperature Range (F) | 40°F to 230°F |
Type | Pump |
Voltage | 115v |
Warranty | 3 Year |
