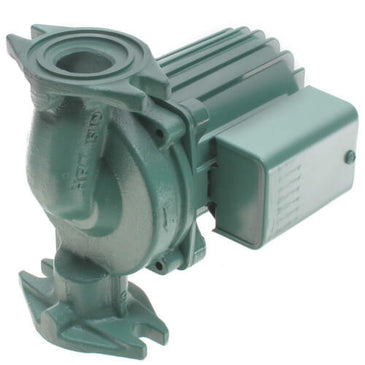

0014-F1 | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014 | Taco
Documents and manuals
Taco 0014-F1 Documents
Overview
Details for 0014-F1
Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Series 0014
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Taco 0014-F1 Circulator is designed for high head / medium flow applications in large residential and light commercial systems. Common uses include high mass boilers, commercial water heaters, and light commercial heating and cooling systems. Features the unique replaceable cartridge which contains all of the moving parts and allows for easy service instead of replacing the whole unit.
Features:
- Unique replaceable cartridge-Field serviceable
- Unmatched Reliability --Maintenance Free
- Quiet, efficient operation
- Direct drive-Low power consumption
- Self-lubricating, No mechanical seal
- Standard high capacity output-Compact design
- Wide range of applications
Applications:
- Hydronic Heating/Cooling
- Radiant Heating
- Zoning with Pumps
- Hydro-Air Fan Coils
- And many others
Specifications
| Item Number | 0014-F1 |
| Brand | Taco |
| Amperage | 1.55 |
| Amps | 1.45A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-32 |
| Head Range (ft.) | 0-22 |
| Hertz | 60 |
| Horse Power | 1/8 |
| HP | 1/8 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 32 |
| Max Flow | 32 GPM |
| Max Head (Ft) | 22 |
| Max Head Pressure | 22ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 0014 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
