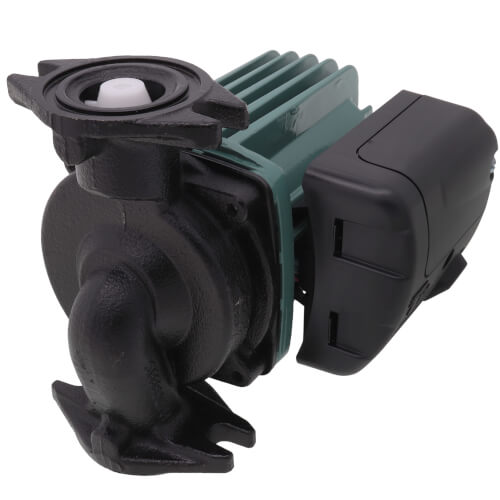

0013-MSF2-IFC | Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0013 | Taco
Documents and manuals
Taco 0013-MSF2-IFC Documents
Overview
Details for 0013-MSF2-IFC
Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0013
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The 0013 3-Speed pump is specificallydesigned for the wide range of high flow /high head requirements of today’s hydronicheating systems. Its’ 3-Speed switchingcapability provides fine tuning control tomeet system design conditions. The 00133-Speed is a direct replacement for theGrundfos UPS 26-99 3-Speed. The 0013delivers the highest starting torque in itsclass and includes a removable, uni-bodyIntegral Flow Check (IFC) that preventsgravity flow, reduces installation costs andimproves pump performance. The StainlessSteel 0013 should be used for open,potable water applications.
From the powerful high performancemotor to the rugged 3-speed switch,everything about the 0013-IFC 3-Speedsays “heavy duty”. With the higheststarting torque in its class, this circulatordelivers the perfect high flow / high headperformance and fine tuning capabilitiesto satisfy the most demanding hydronicssystem installer. Also available in StainlessSteel for potable water systems.
The 3-speed circulator features aremovable, uni-body Integral Flow Check(IFC) that maximizes flow and preventsgravity flow - even in the tallestbuildings. Wiring is a snap thanks to anew extra roomy, easy access capacitorbox.
Features:
- 3-Speed Switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy-Duty construction for longer life
- Removable high-flow Integral Flow Check (IFC)
- Prevents gravity flow
- Reduces installation costs
- Improves pump performance
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Wide range of applications
- Cast Iron or St. Steel, flanged construction
Specifications
| Item Number | 0013-MSF2-IFC |
| Brand | Taco |
| Amperage | 2.15 |
| Amps | 1.65A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-30 |
| Head Range (ft.) | 30 |
| Hertz | 60 |
| Horse Power | 1/6 |
| HP | 1/6 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 30 |
| Max Flow | 42 GPM |
| Max Head (Ft) | 30 |
| Max Head Pressure | 14ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Max Temp (F) | 210°F |
| Min Temp (F) | 40°F |
| Optional | Integral Flow Check |
| Optional | Multi Speed |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 0013 |
| Speeds | 3 |
| Type | 3-Speed Pump |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
