0013-F3 | Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013 | Taco

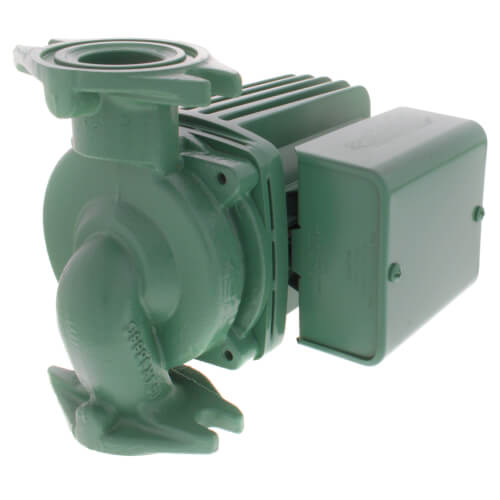

Taco | 0013-F3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 0013-F3

Documents and manuals

Overview

Details for 0013-F3

Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-33 GPM
Head Range: 0-33 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4¯, 1¯, 1-1/4", 1-1/2" Flanged
The Taco 0013 is specifically designed for high head/high flow applications in Large Residential and Light Commercial systems. Ideal for high pressure drop Boilers, Fan Coil units, Heat Exchangers, larger Radiant systems, Heat Recovery and Geothermal systems. The Bronze 0013 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0013 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.

Features
Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow-Protects motor windings against condensate buildup.
High Velocity Performance-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction

Typical Applications
High pressure drop Boilers
Fan Coil units
Heat Exchangers
larger Radiant systems
Heat Recovery
Geothermal systems

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0013-003RP
Cartridge Assembly Complete: 0013-007RP

Specifications

Item Number 0013-F3
Brand Taco
Amperage 2
Amps 2A
Application Heating
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-33
Head Range (ft.) 0-33
Hertz 60
Horse Power 1/6
HP 1/6 HP
Material Cast Iron
Max Flow (GPM) 33
Max Flow 34 GPM
Max Head (Ft) 33
Max Head Pressure 33ft
Max Pressue 125 PSI
Max Pressure (PSI) 125
Optional
Phase 1
Phase Single Phase
Pump Type Circulator Pump
RPM 3250
RPM 3250 RPM
Series Series 0013
Temperature Range (F) 40°F to 230°F
Type Pump
Voltage 115v
Warranty 3 Year
