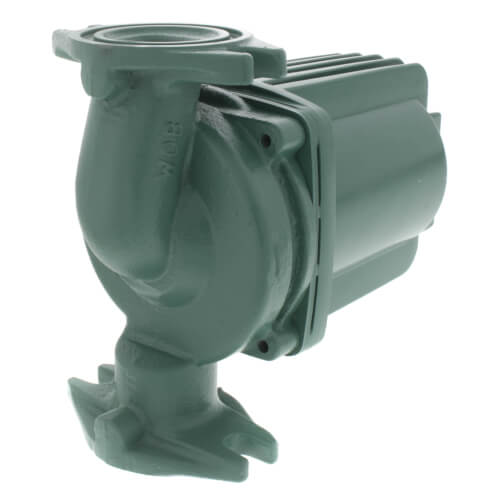

0011-F4-2IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0011 | Taco

Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0011

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Taco 0011-F4-2IFC Circulator Pump with IFC (Integral Flow Check) is designed for high head and medium flow applications, that are common for large residential and light commercial applications, such as closed loop hydronic heating. The IFC built into the circulator eliminates the need for purchase and installation of an additional in-line check valve and performs better when compared to regular check valves. Taco 0011-F4-2IFC Circulator is perfect for boilers with high pressure drop, as well as fan coil units, heat exchangers, large radiant heat and heat recovery/geothermal systems. Universal flange to flange dimensions and flange orientation of the circulator allows it to serve as a replacement for other models. Compact, has low power consumption and ideal for high-efficiency jobs.Both IFC and cartridge are easily accessed for service, saving the need for replacing the entire circulator.

Features:

• Integral Flow Check (IFC) , Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, easy to service, Improved performance vs. In-line flow checks
• Unique replaceable cartridge-Field serviceable
• Unmatched reliability-Maintenance free
• Quiet, efficient operation
• Direct drive-Low power consumption
• Self lubricating, No mechanical seal
• Standard high capacity output-Compact design
• Wide range of applications

Applications:

• High Pressure Drop Boilers
• Medium/Large Hydronic, Geothermal and Radiant Heating projects
• Wood Boilers / Furnaces
• Hydro-Air Fan Coils
• And many others

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0011-009RP
Valve Assembly Trans/Relay: 0012-021RP
