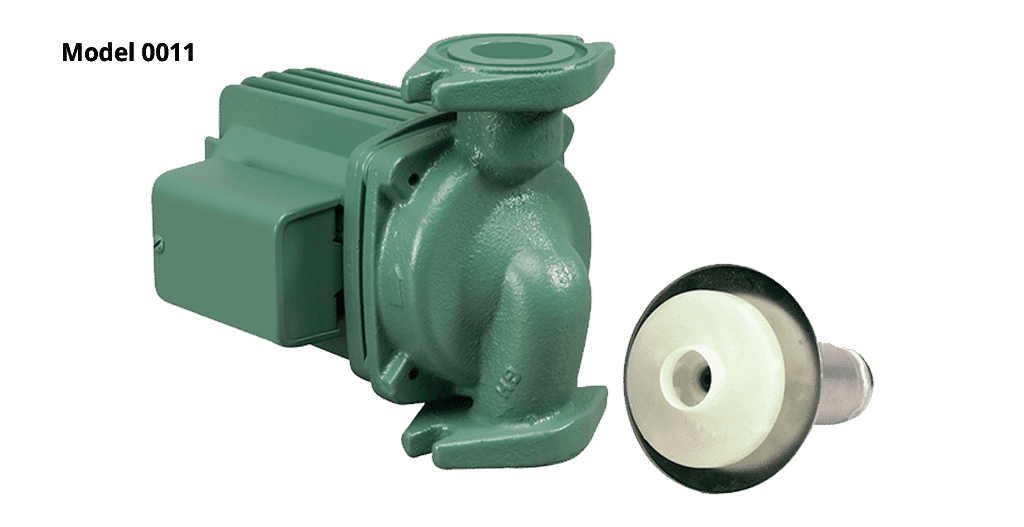

0011-BF4A-J | Circulator Pump | Bronze | 1/8 HP | 230V | Single Phase | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Series 0011 | Taco
Documents and manuals
Taco 0011-BF4A-J Documents
Overview
Details for 0011-BF4A-J
Circulator Pump | Bronze | 1/8 HP | 230V | Single Phase | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Series 0011
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Specifications
| Item Number | 0011-BF4A-J |
| Brand | Taco |
| Amps | |
| Connection | Flanged |
| HP | 1/8 HP |
| Material | Bronze |
| Max Flow | 31 GPM |
| Max Head Pressure | 31ft |
| Max Pressue | 125 PSI |
| Optional | |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 RPM |
| Series | Series 0011 |
| Type | Pump |
| Voltage | 230V |
