0010-VDTF3 | 0010 Cast Iron Variable Speed, Delta T Circulator, 1/8 HP | Taco
Documents and manuals
Taco 0010-VDTF3 Documents
Overview
Details for 0010-VDTF3

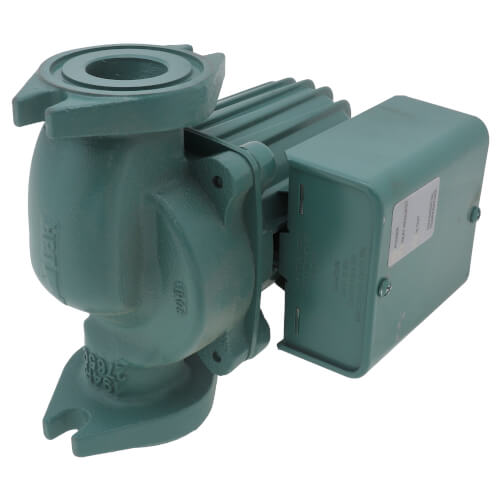

0010 Cast Iron Variable Speed, Delta T Circulator, 1/8 HP
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Taco Variable Speed Delta-T Circulator's all-in-one design combines a microprocessor based variable speed differential controller with the reliability and convenience of Taco's 00 Cartridge Circulators. Simply dial in the design Delta-T of the system or zone (from 5°F - 50°F) and then sit back and watch the circulator automatically adjust its performance to match the systems ideal BTU/hr output, while conserving energy and eliminating velocity noise.
Features:
- All-In-One-Pump & Control
- Easy to Install
- UL Approved
- Snap-In-PC Board, replaceable
- LED Status Panel
- Fuse Protected
- Plug-In Low Voltage Wiring Terminal
Replacement Parts List:
Casing O-Ring: 0010-008RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 0010-021RP
Specifications
| Item Number | 0010-VDTF3 |
| Brand | Taco |
| Amperage | 1.1 |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Flow Range (GPM) | 0-32 |
| Head Range (ft.) | 0-10 |
| Hertz | 60 |
| Horse Power | 1/8 |
| Material | Cast Iron |
| Max Flow (GPM) | 32 |
| Max Head (Ft) | 10 |
| Max Pressure (PSI) | 125 |
| Phase | 1 |
| RPM | 3250 |
| Series | Series 0010 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Pump |
| Type | Var. Speed Pump |
| Voltage | 115v |
| Warranty | 3 Year |
