0010-SF3-IFC | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Integral Flow Check | Series 0010 | Taco

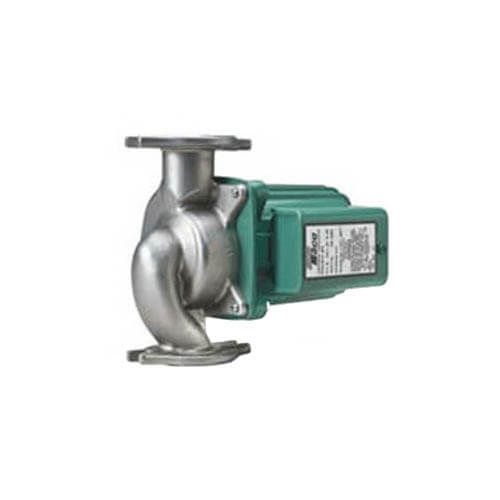

Taco | 0010-SF3-IFC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 0010-SF3-IFC

Documents and manuals

Taco 0010-SF3-IFC Documents

Overview

Details for 0010-SF3-IFC

Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Integral Flow Check | Series 0010

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0010-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00® circulators. Ideal for residential or light commercial hydronic or radiant heating, hydro-air fan coils, indirect water heaters or domestic water recirculation systems. By locatingthe IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entireunit. Taco's patented Priority Zoning Circulator with built-in transformer, relay, priority switch and optional IFC in one complete, compact package makes it ideal for zoning.

Features:
  • Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
  • Unique replaceable cartridge-field serviceable
  • Unmatched reliability-maintenance free
  • Quiet, efficient operation
  • Direct drive - Low power consumption
  • Self lubricating, No mechanical seal
  • Standard high capacity output - Compact design
  • Wide range of applications
  • Flanged connections


Replacement Parts List:
Casing O-Ring: 0010-008RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0010-022RP
Valve Addembly Trans/Relay: 0012-021RP

Specifications

Item Number 0010-SF3-IFC
Brand Taco
Amperage 1.17
Amps 1.1A
Application Heating
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-30
Head Range (ft.) 0-9
Hertz 60
Horse Power 1/8
HP 1/8 HP
Material Stainless Steel
Max Flow (GPM) 30
Max Flow 30 GPM
Max Head (Ft) 9
Max Head Pressure 9ft
Max Pressue 150 PSI
Max Pressure (PSI) 125
Optional
Optional Integral Flow Check
Phase 1
Phase Single Phase
Pump Type Circulator Pump
RPM 3250
RPM 3250 RPM
Series Series 0010
Temperature Range (F) 40°F to 230°F
Type Pump
Voltage 115v
Warranty 3 Year
