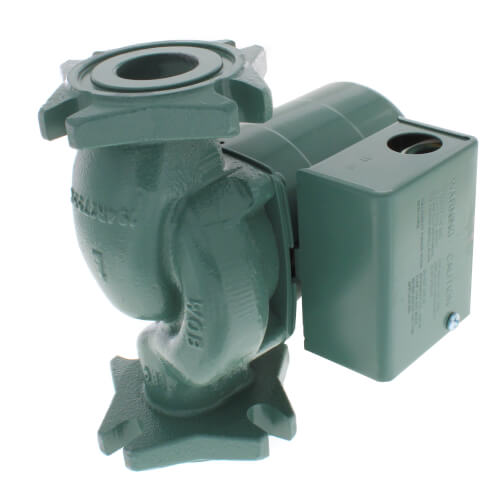

0010-MSF2-IFC | Circulator Pump | Cast Iron | 1/20 HP | 115V | Single Phase | 0.91A | 3250 RPM | Flanged | 31 GPM | 11ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0010 | Taco
Documents and manuals
Taco 0010-MSF2-IFC Documents
Overview
Details for 0010-MSF2-IFC
Circulator Pump | Cast Iron | 1/20 HP | 115V | Single Phase | 0.91A | 3250 RPM | Flanged | 31 GPM | 11ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0010
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The 0010 3-Speed Service Pump is designed as an ideal replacement circulator for service contractors to use on any emergency no-heat call. The 0010 3-Speed replaces most commonly used circulators. Simply install it and set the speed to match the original pump performance. The handy new four bolt flange matches up to any pump regardless of style, type or age.
Features:
- 3-Speed Switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy duty construction for longer life
- 4-bolt universal flange (0010 only)
- Removable high-flow Integral Flow Check (IFC+)
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Wide range of applications
- Cast Iron, flanged construction
Replacement Parts List:
- Casing O-Ring: 0010-032RP
- Flange Gasket Set: 007-007RP
- Capacitor or PC Board: 007-002RP
- Cartridge Assembly Complete: 0010-031RP
- Valve Addembly Trans/Relay: 0012-021RP
Specifications
| Item Number | 0010-MSF2-IFC |
| Brand | Taco |
| Amperage | 0.75-1.1 |
| Amps | 0.91A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-29 |
| Head Range (ft.) | 0-10.5 |
| Hertz | 60 |
| Horse Power | 1/20 |
| HP | 1/20 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 29 |
| Max Flow | 31 GPM |
| Max Head (Ft) | 10.5 |
| Max Head Pressure | 11ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | Integral Flow Check |
| Optional | Multi Speed |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 0010 |
| Temperature Range (F) | 40°F to 230°F |
| Type | 3-Speed Pump |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
