Documents: 0010-F3Y

Datasheet Installation Instructions More Info

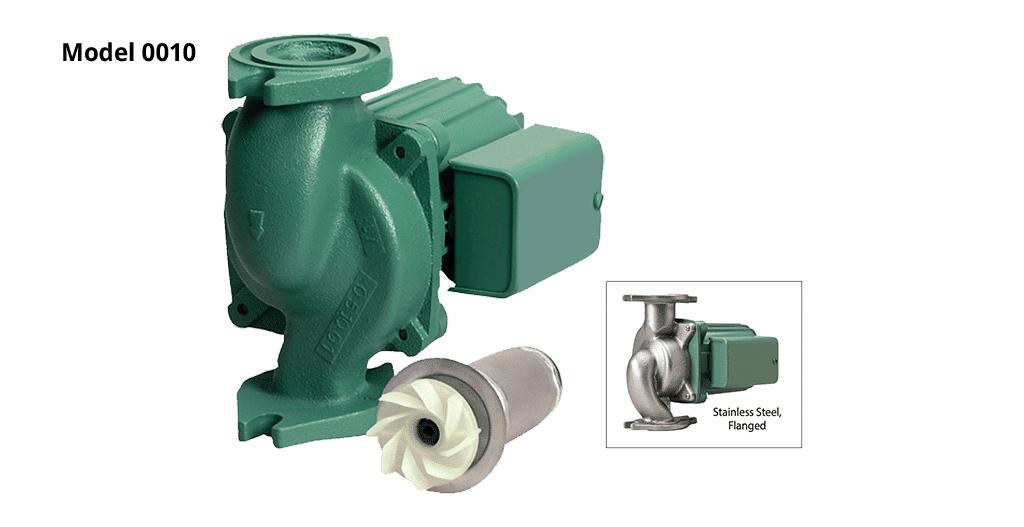

0010-F3Y | Circulator Pump | Cast Iron | 1/8 HP | 230V | Single Phase | 1.1A | 3250 RPM | Flanged | 32 GPM | 10ft Max Head | 150 PSI Max Press. | Series 0010 | Taco

Brand: TacoSKU: 0010-F3Y

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 0010-F3Y

Overview & Specifications Reviews Parts & Accessories

Overview Details for 0010-F3Y

Circulator Pump | Cast Iron | 1/8 HP | 230V | Single Phase | 1.1A | 3250 RPM | Flanged | 32 GPM | 10ft Max Head | 150 PSI Max Press. | Series 0010

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Specifications

Item Number	0010-F3Y
Brand	Taco
Amps	1.1A
Connection	Flanged
HP	1/8 HP
Material	Cast Iron
Max Flow	32 GPM
Max Head Pressure	10ft
Max Pressue	150 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250 RPM
Series	Series 0010
Type	Pump
Voltage	230V
