VW3A8306RC | MODBUS ADP PLG 120 OHM | Square D

Brand: Square DSKU: VW3A8306RC

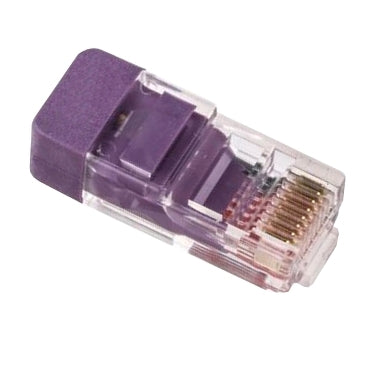

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VW3A8306RC

Jump to: Overview & Specifications Reviews

Overview Details for VW3A8306RC

MODBUS ADP PLG 120 OHM

Modbus Line Terminator

For end of RS485 line, RJ45 Connector
Terminal Resistance: 120 Ohm
Set up 2

This line termination enables your product integration in Modbus serial link connection. It has a 120Ohm resistance and RJ45 connection type. It is sold in lots of 2.

Specifications

Range of Product: Altivar
bus type: Modbus
accessory / separate part category: Connection accessory
accessory / separate part type: Line terminator
accessory / separate part destination: RJ45 connector
Quantity per Set: Set of 2
range compatibility: Altivar 61;Altivar 71Q;Altivar Easy 310;Altivar 31;Preventa XPS MF;Altivar Machine ATV320;Altivar 32;Lexium SD3;Modicon LMC058;Altivar Easy 610;Altivar 21;Zelio Logic;Altivar Process ATV600;Altistart 48;Altivar Process ATV900;Modicon M258;Altivar 312;Altivar Machine ATV340 except Sercos drives;Modicon M238;Altivar 61Q;Altivar 31C;Altistart 22;Altivar 212;Altivar 71;Altivar 12
communication port protocol: Modbus
terminator resistance: 120 Ohm
terminator capacitance: 1 nF
Net Weight: 0.44 lb(US) (0.2 kg)
Category: 18062-MISC. ALTIVAR/ALTISTART CABLES;CONNECTORS
Discount Schedule: CP1G
GTIN: 3389110400533
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.79 in (2.0 cm)
Package 1 Width: 2.36 in (6.0 cm)
Package 1 Length: 2.36 in (6.0 cm)
Package 1 Weight: 0.28 oz (8.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 3.06 lb(US) (1.388 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 800
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 23.62 in (60.0 cm)
Package 3 Length: 31.50 in (80.0 cm)
Package 3 Weight: 41.44 lb(US) (18.796 kg)
Warranty: 18 months
